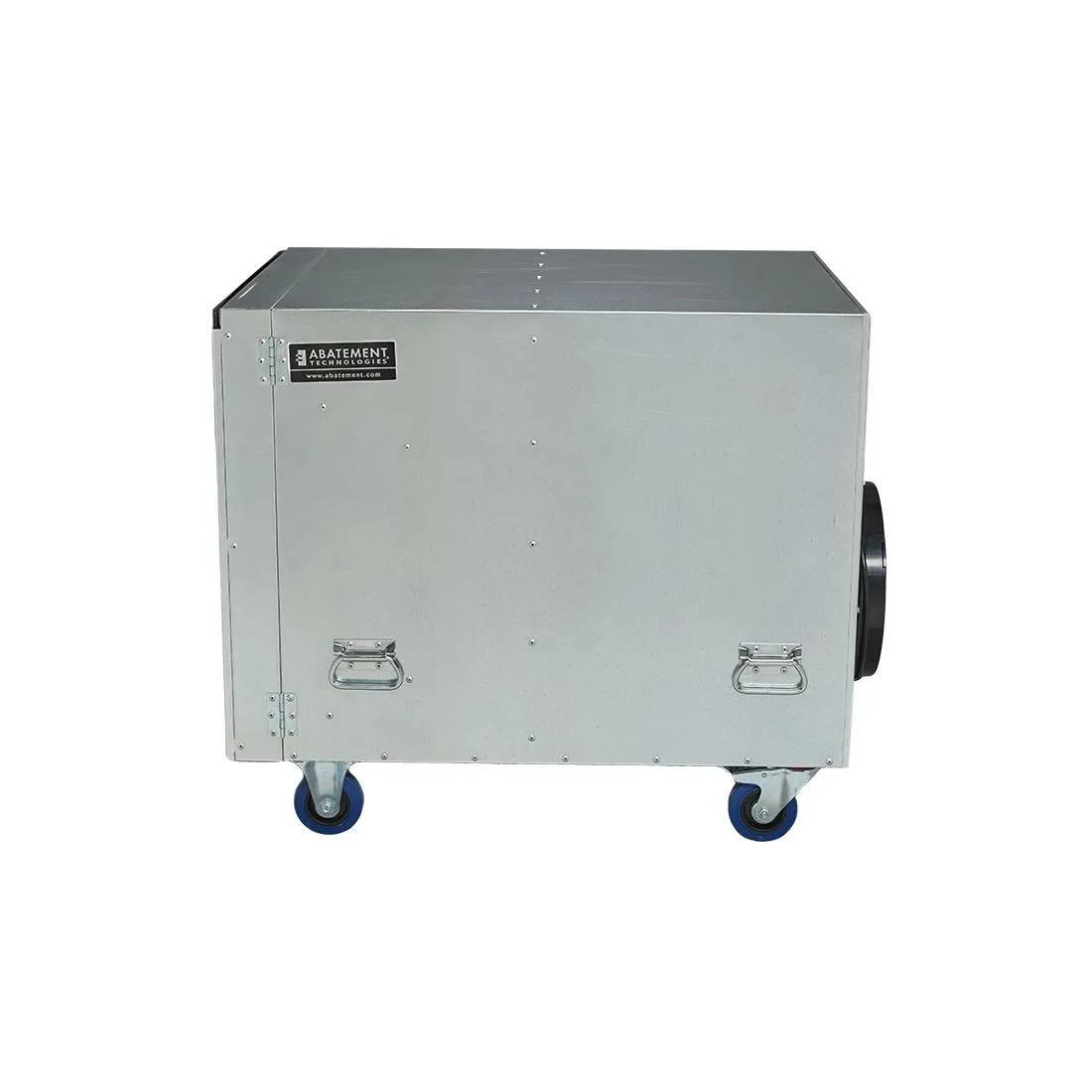

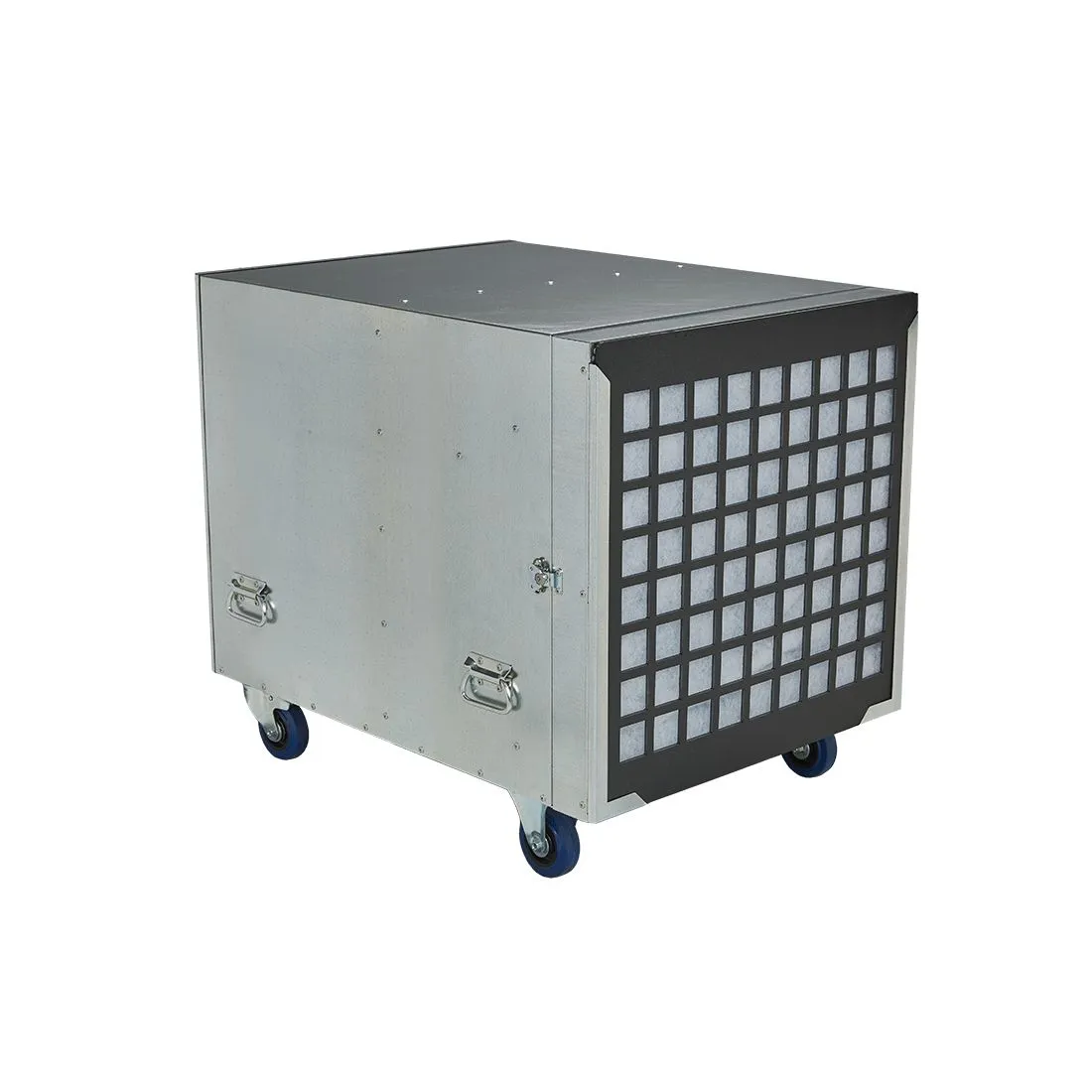

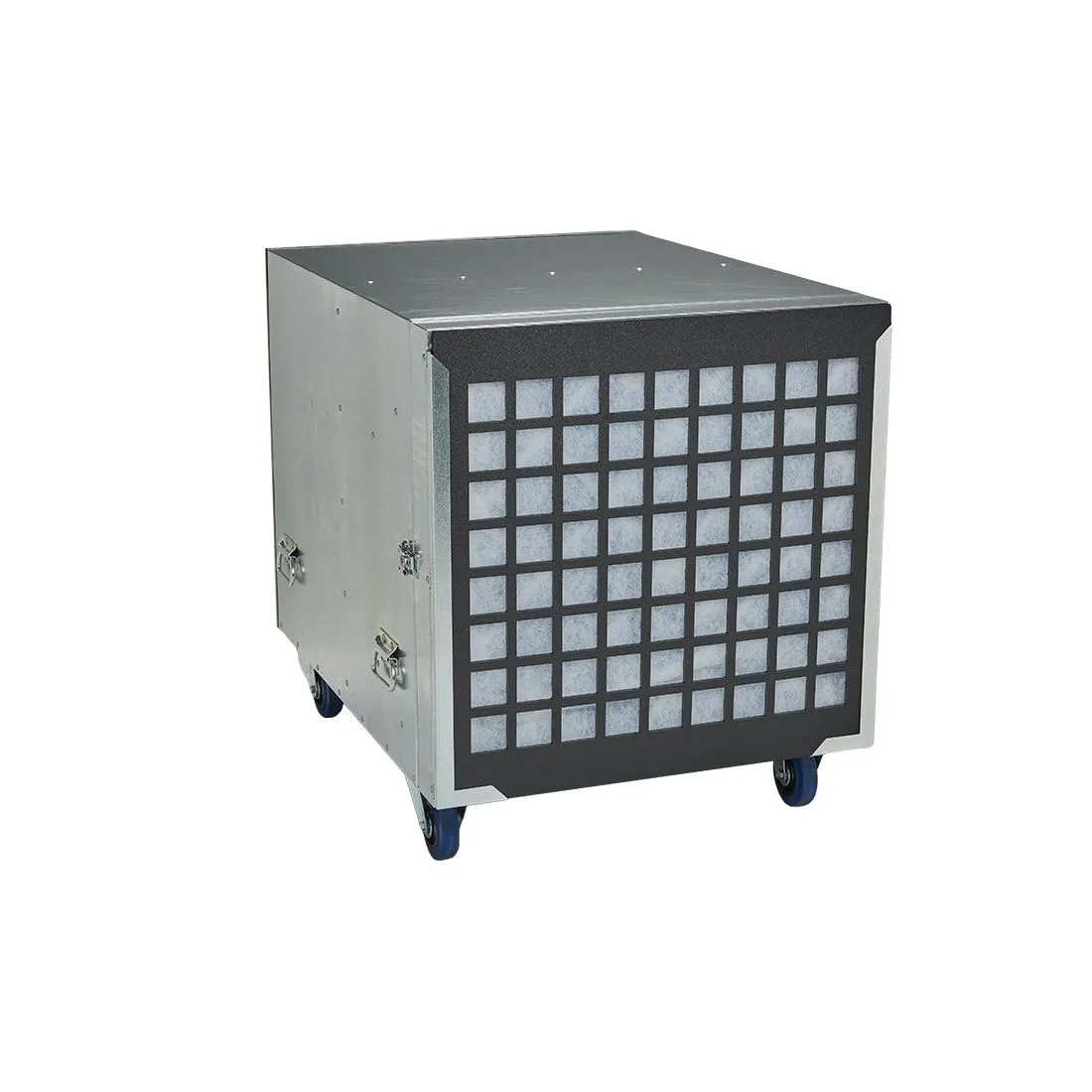

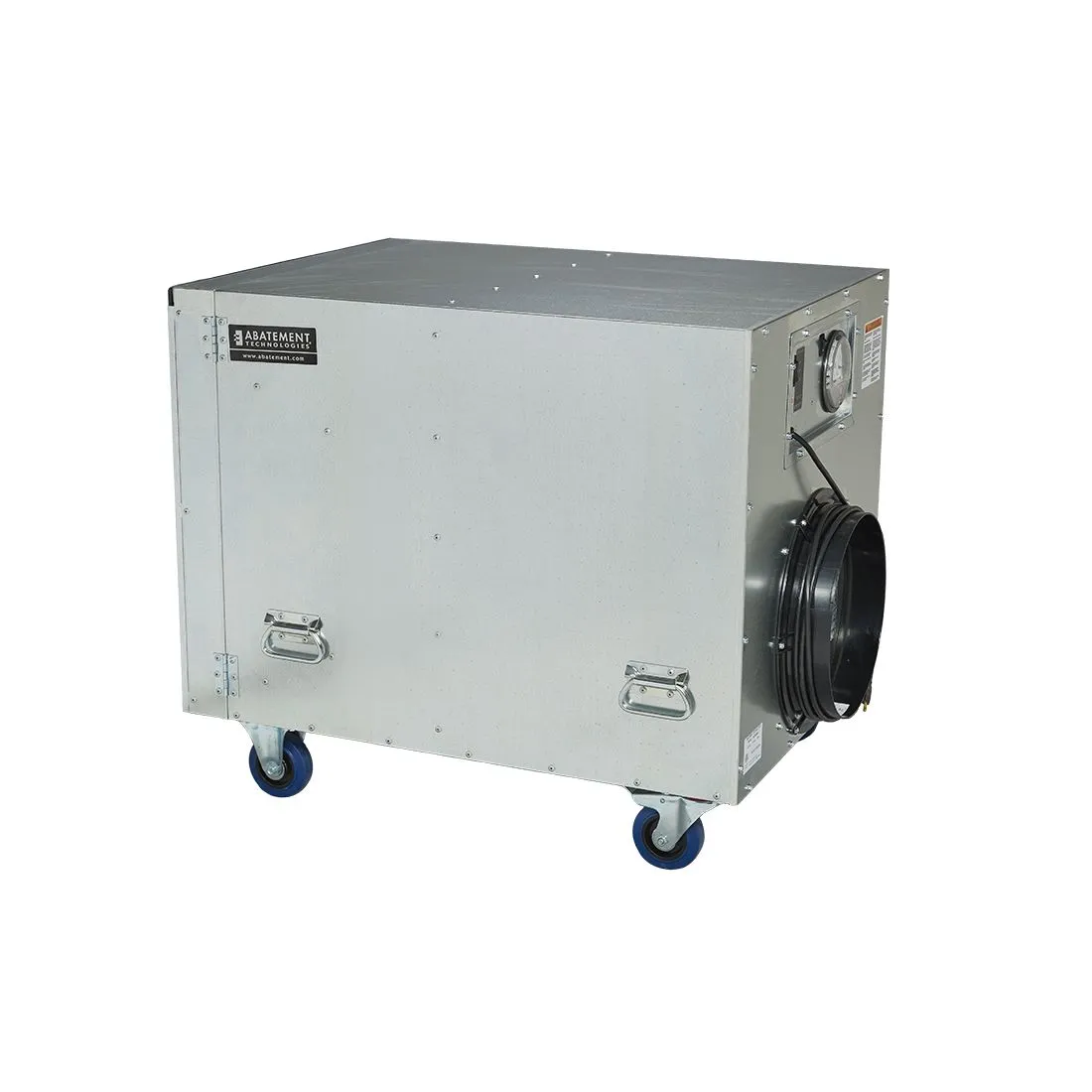

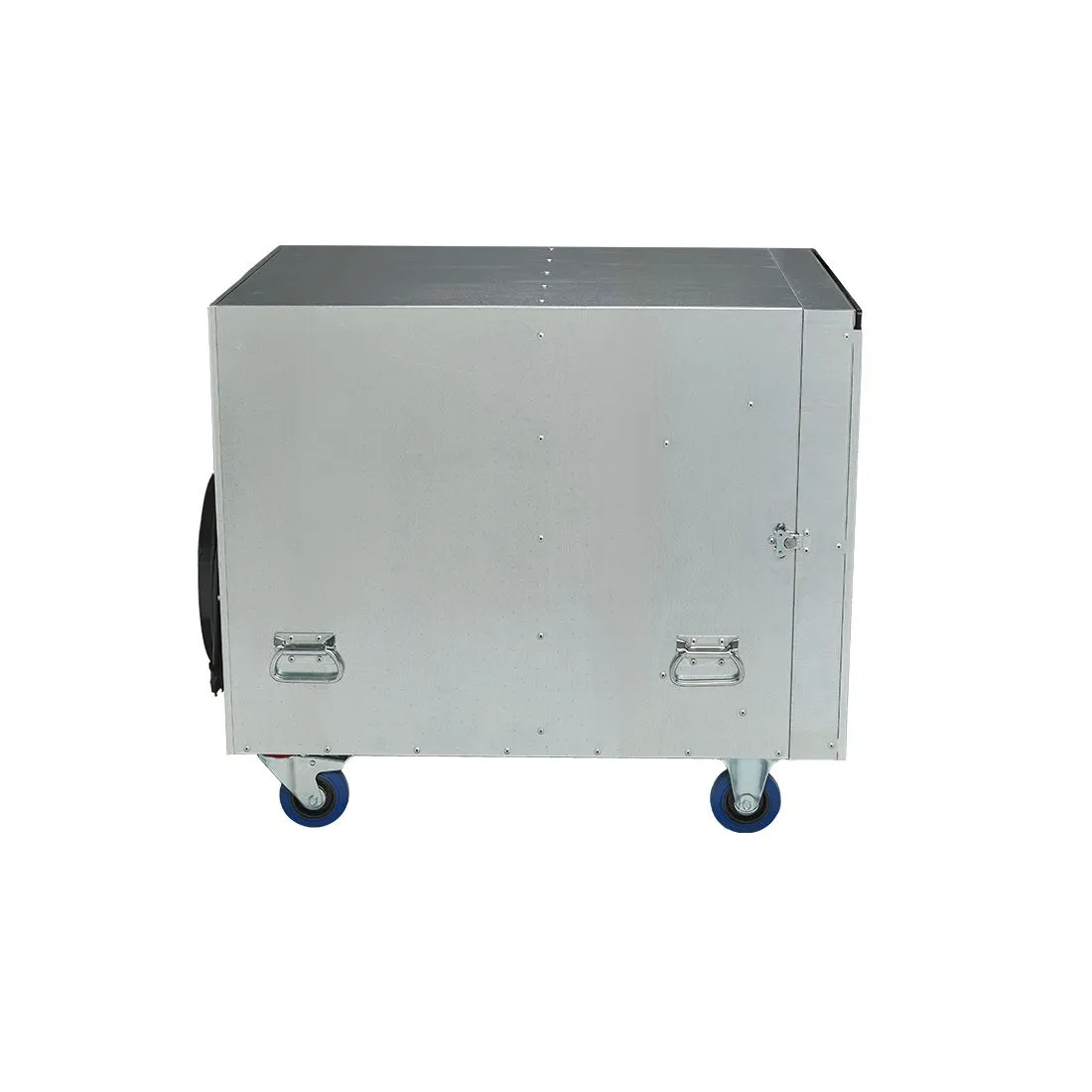

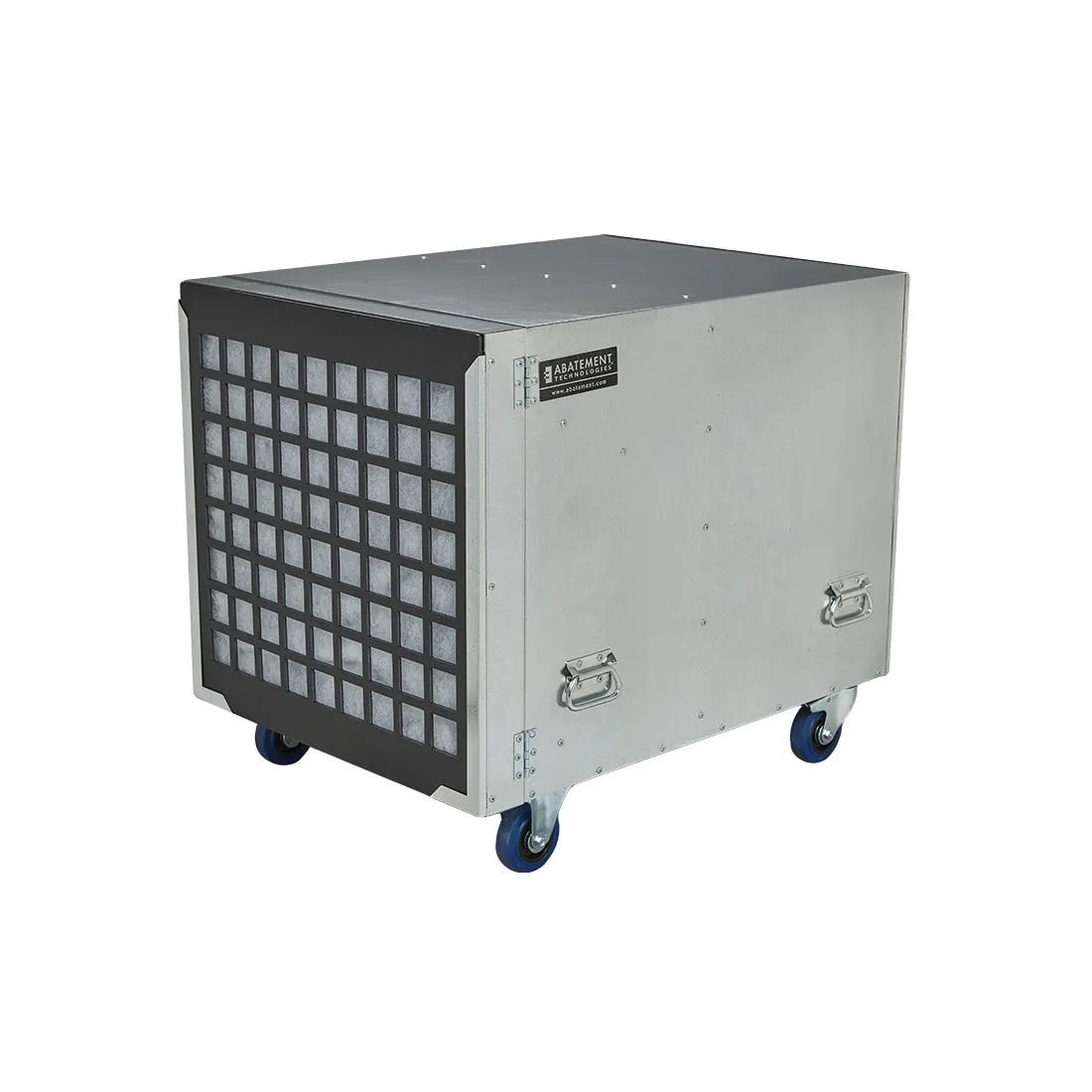

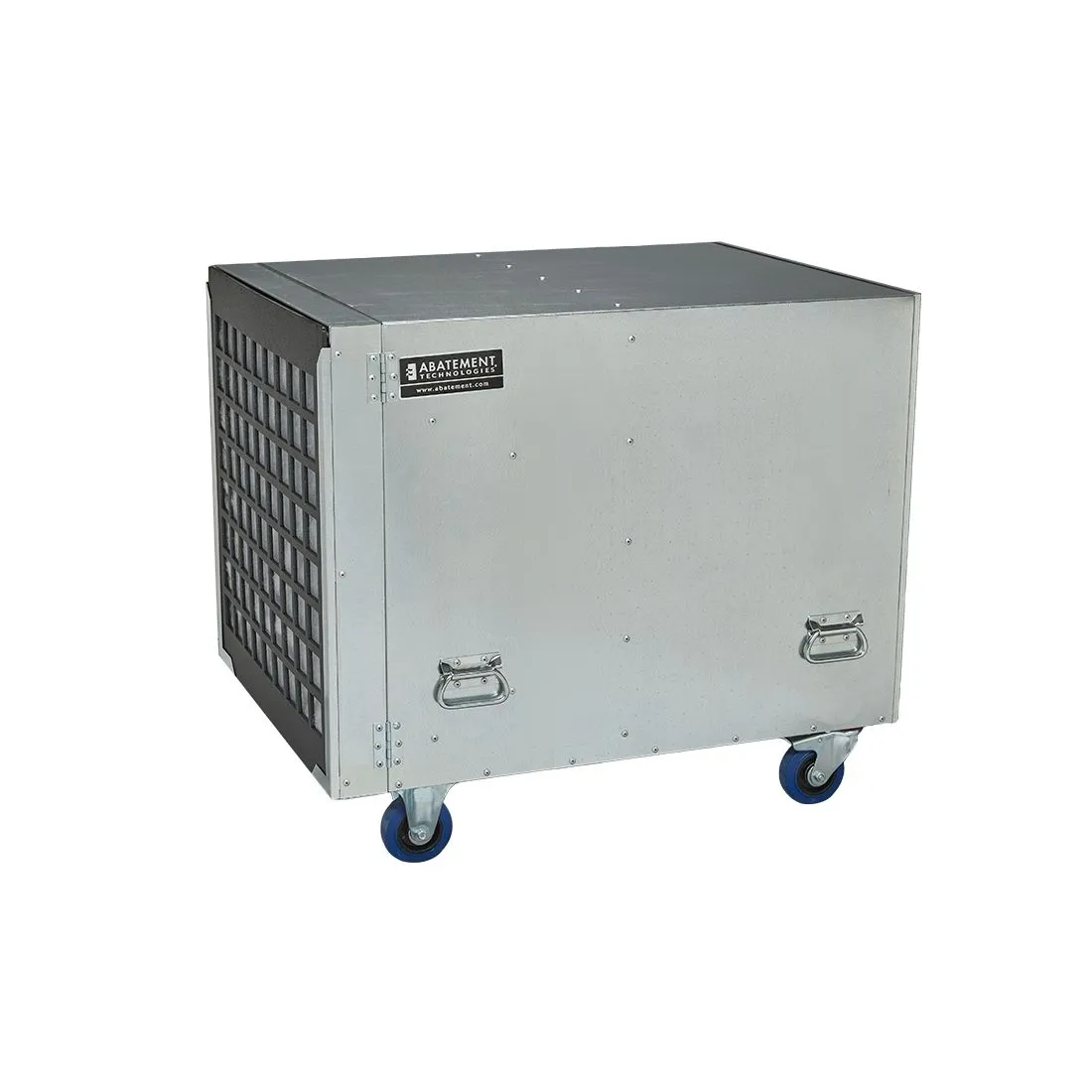

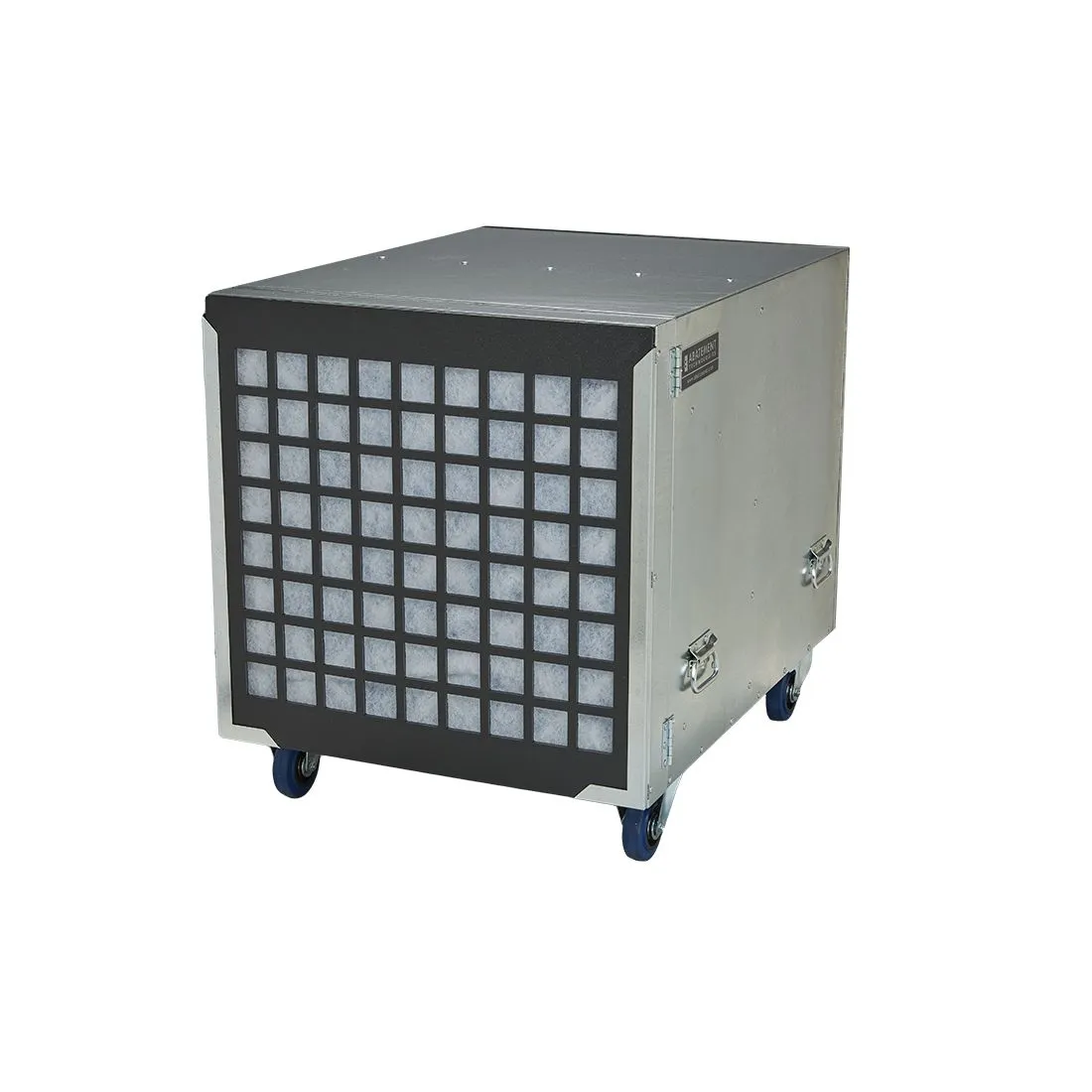

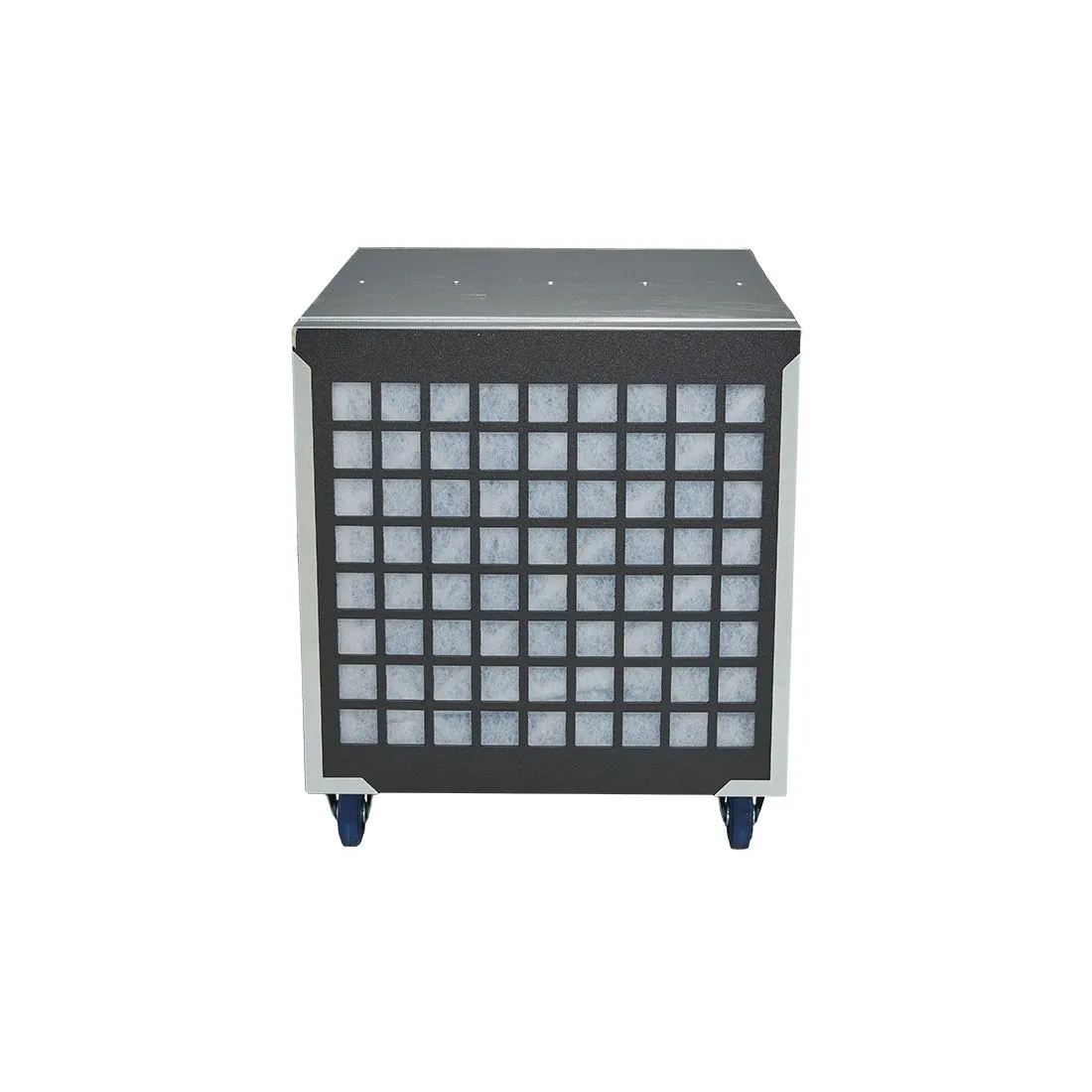

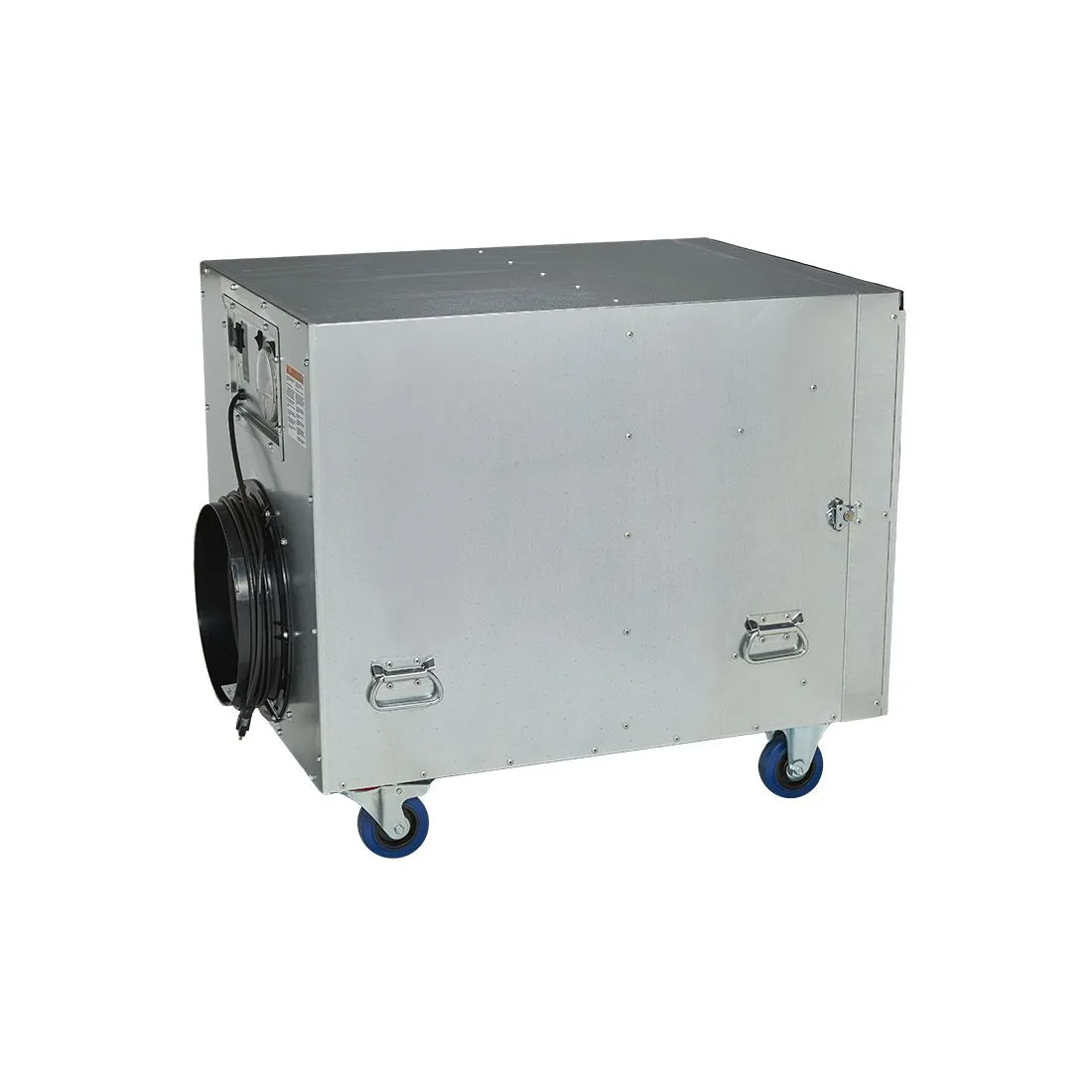

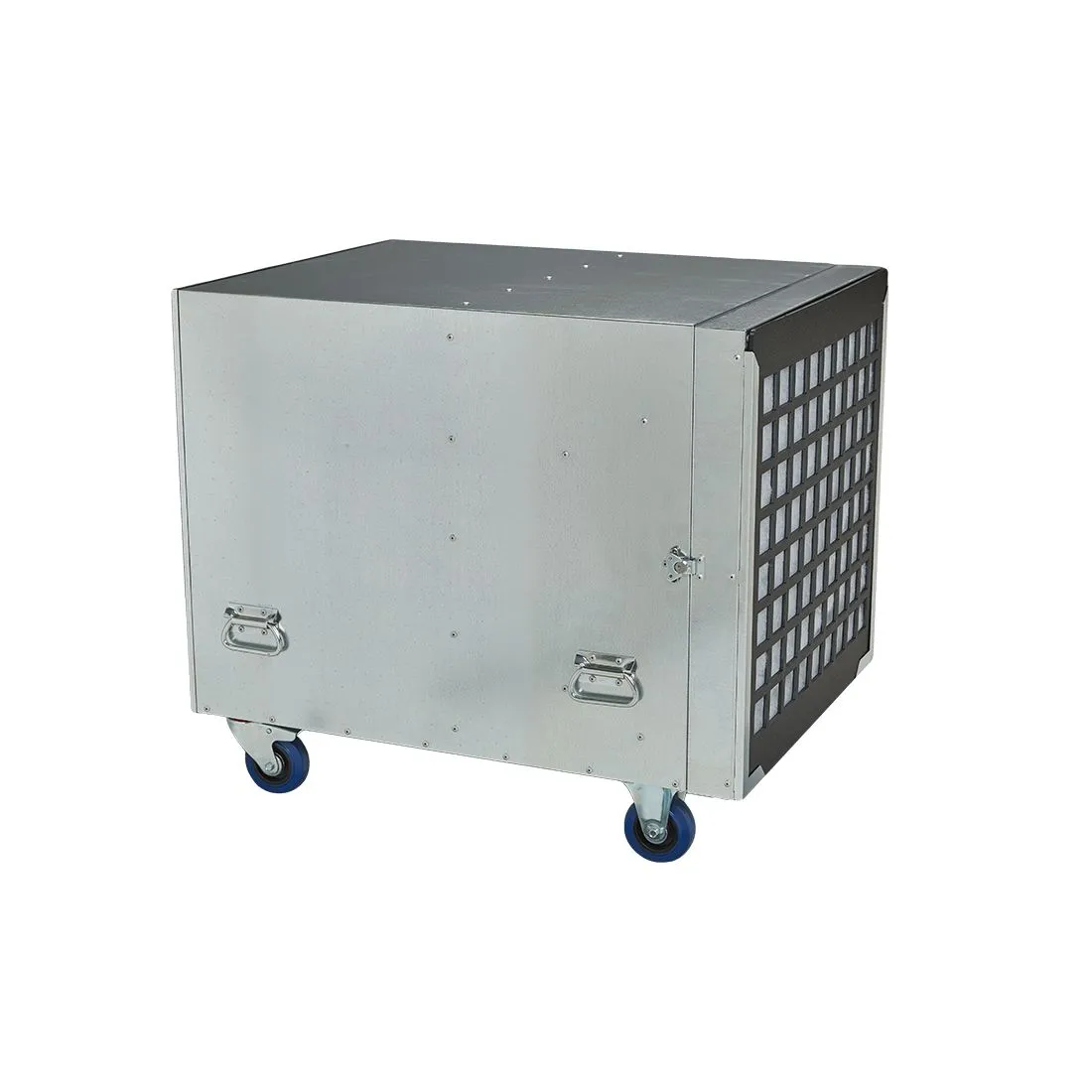

＋Abatement Technologies® HEPA-AIRE H2KMA Deluxe Model Negative Air Machine
Legendary Air Cleaning Performance in a Galvanized Steel Cabinet
HEPA-AIRE Negative Air Machines from Abatement Technologies® feature high-quality, galvanized steel cabinets and water tight pop rivet construction. Four standard HEPA-AIRE models are available:
HEPA-AIRE Model H2KM and Deluxe Model H2KMA Negative Air Machines

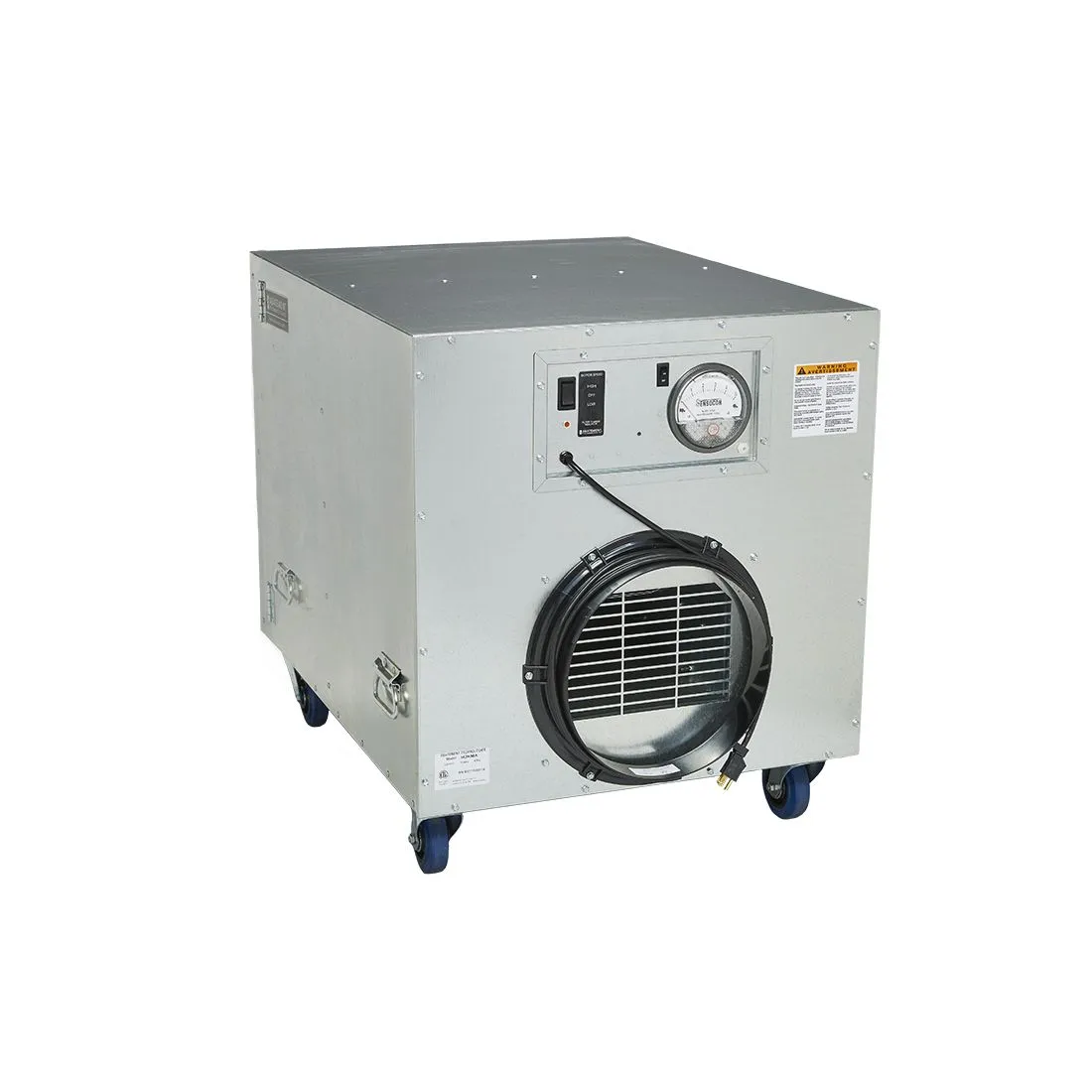

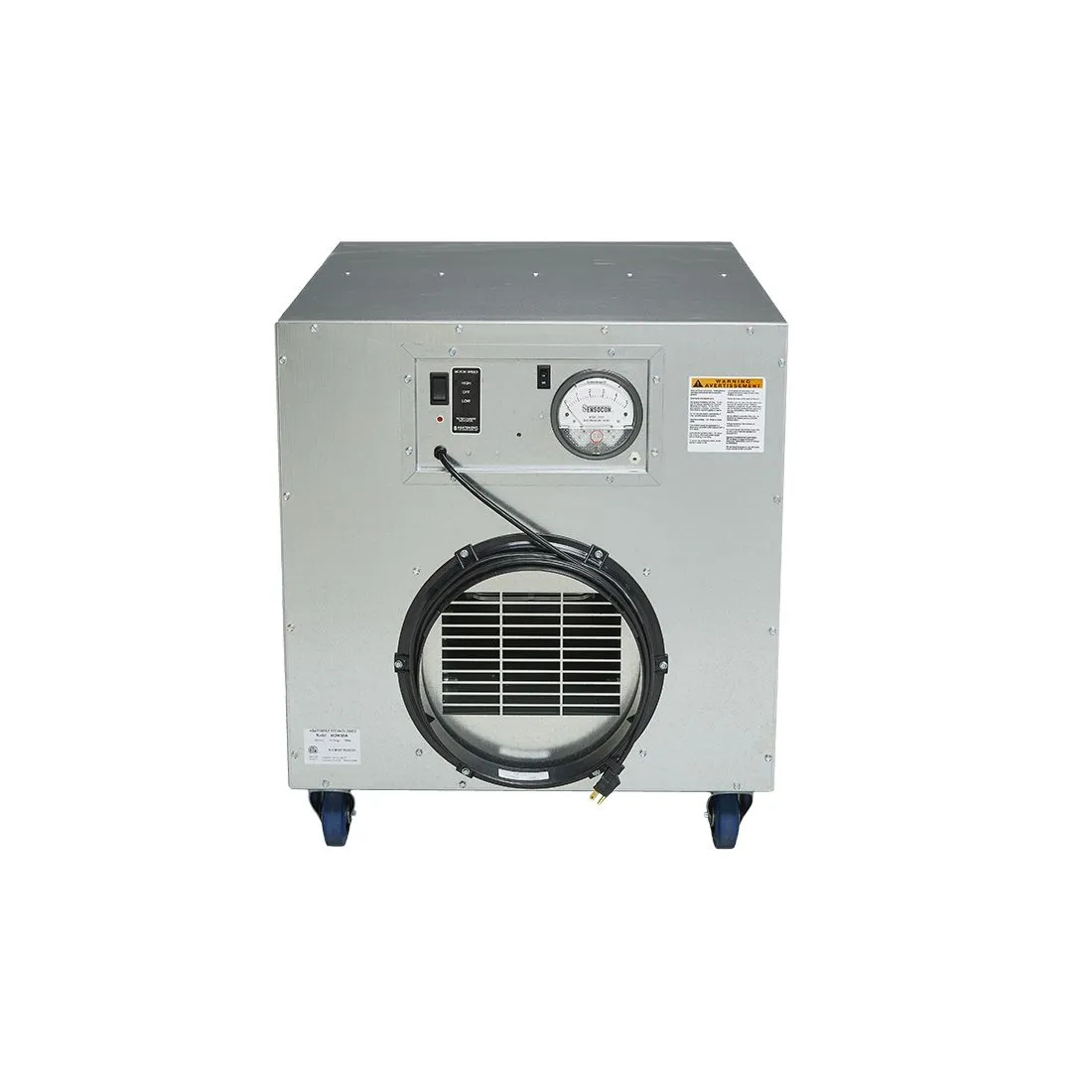

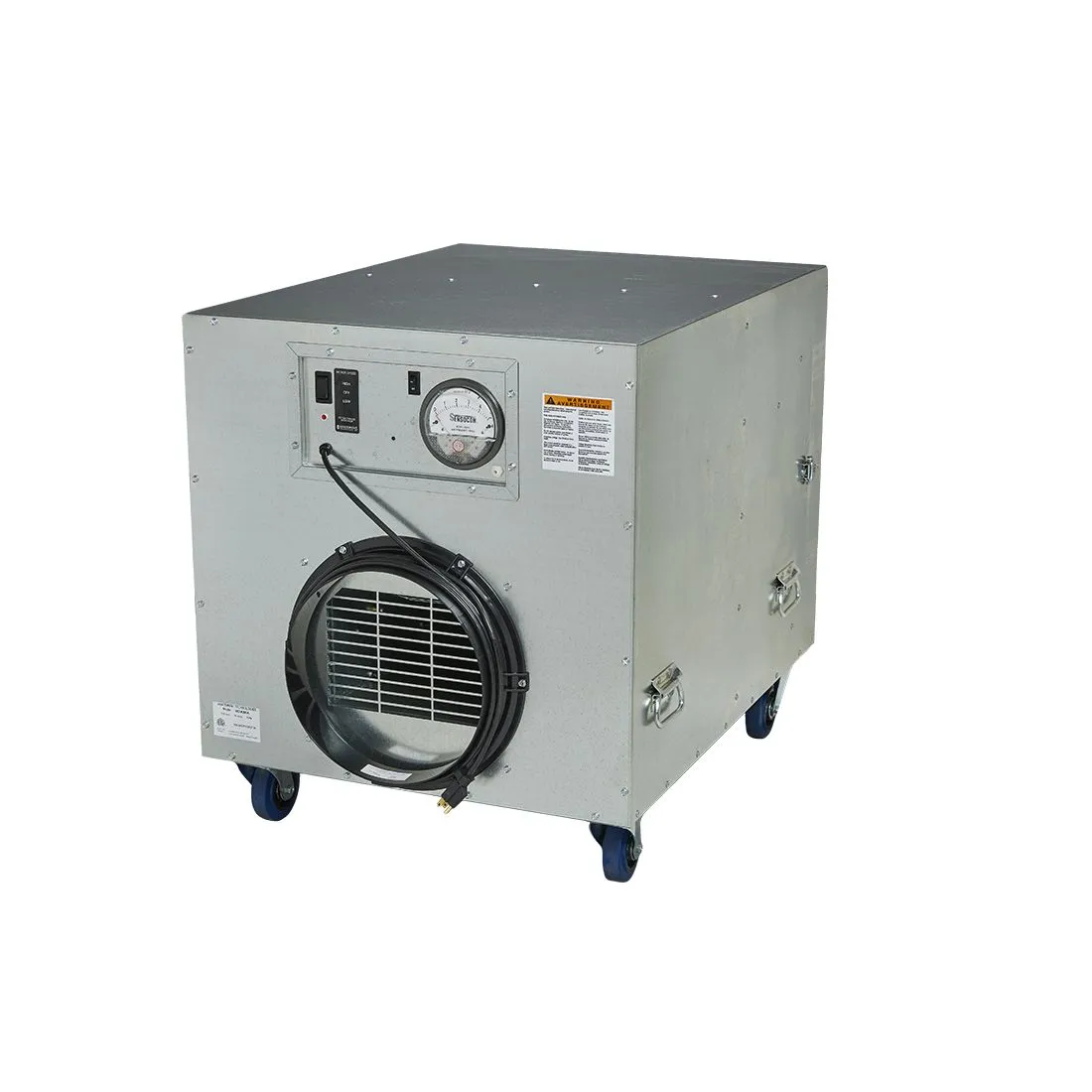

The powerful HEPA-AIRE model H2KM and deluxe model H2KMA Negative Air Machines from Abatement Technologies are designed for the contractor who wants the very best in performance, reliability and quality. The difference between the two units is that the H2KM is equipped with a visual “change filter” indicator lamp, while the H2KMA deluxe model adds a large 5” diameter differential pressure gauge and an audio “change filter” alarm.
Features of the HEPA-AIRE Model H2KM and H2KMA include:
- Two Operating Speeds: 2,000 CFM (High) & 1,300 CFM (Low)
- Weight: 124 Pounds Including Filters
- Fast ‘No Tools’ Pre-filter Changes
- Standard 6”-Deep 99.97% Efficiency HEPA Filter Individually Tested and Certified at 2,000 CFM Airflow
- Also Accepts 12”-Deep Replacement 99.97% Efficiency HEPA Filter High-Performance Motor & Blower

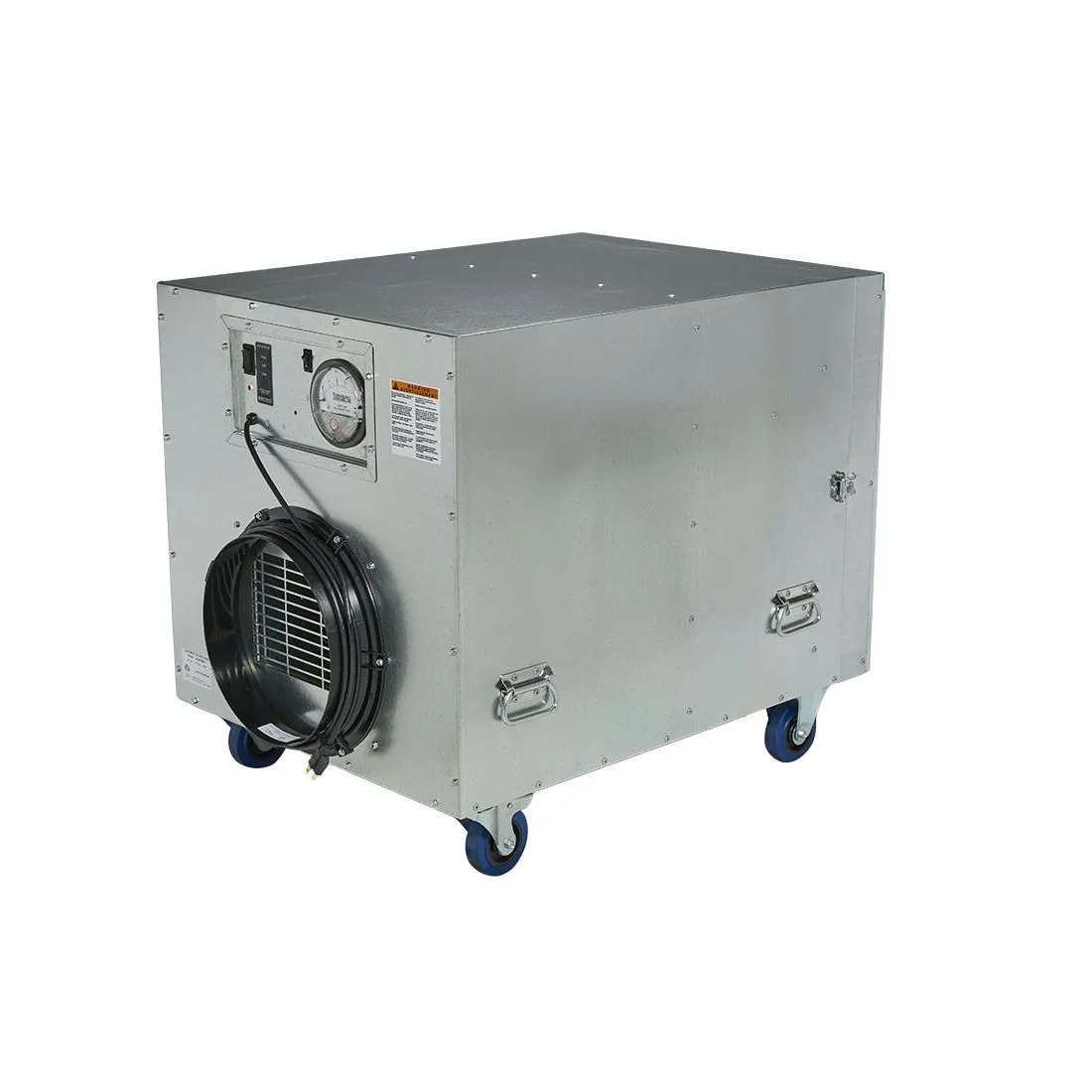

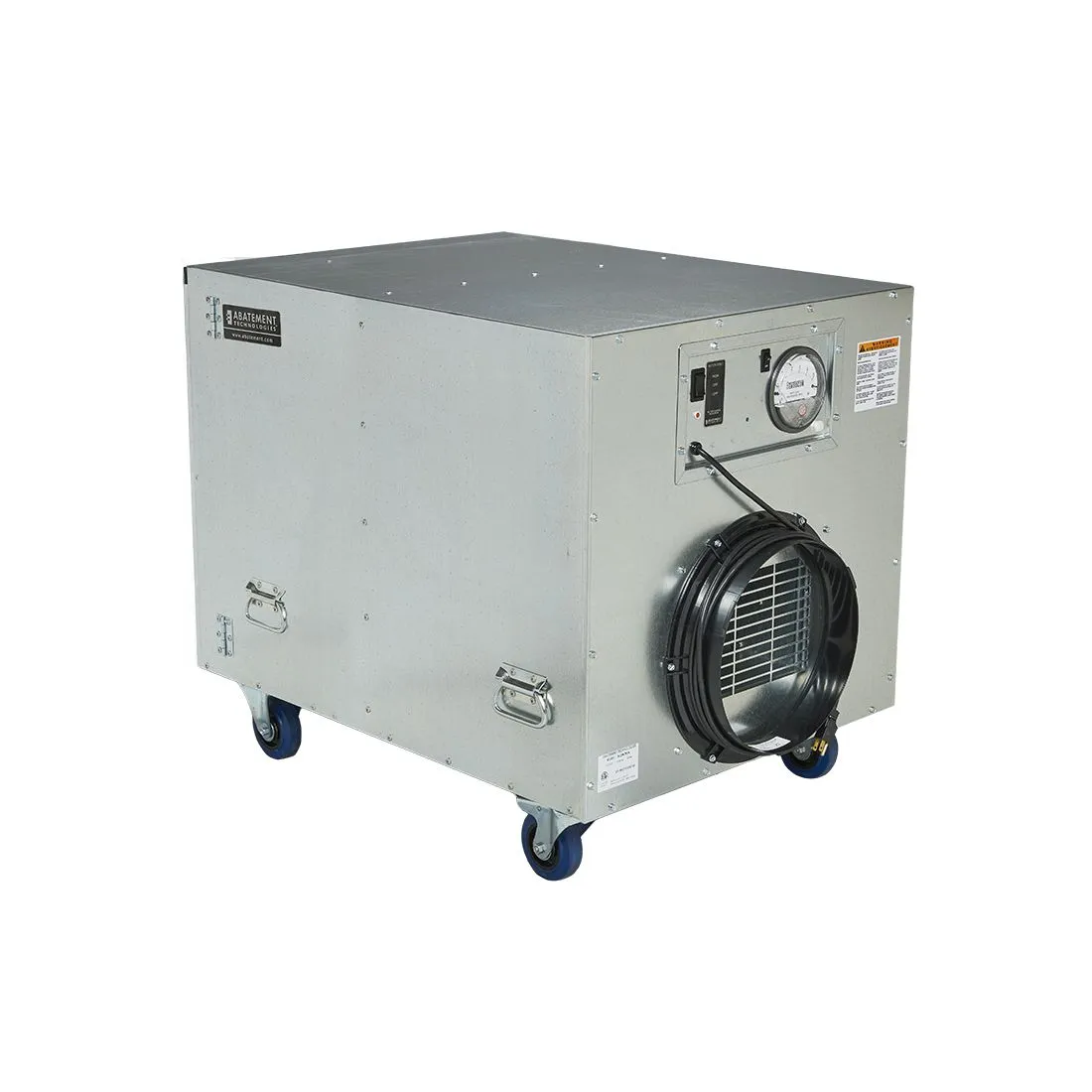

- Convenient Back Panel-Mounted Controls
- Two Fixed & Two Locking 4” Swivel Casters
- Attached Exhaust Collar for 12” Flex Duct Molded Inlet Manifold for 12” Flex Duct (Not included) HEPA-AIRE H2KMA Negative Air Machine
Two export models, the H2MTF and H2MATF, are available for countries with 230-volt/50 hertz power supplies.
Specifications:
| Brand | Abatement Technologies® |
| Model | HEPA-AIRE® H2KMA |
| SKU | H2KMA |
| Dimensions (L x W x H) |
35.75 x 26 x 30.25 (91 x 66 x 77) |
| Power Supply Requirements |
120 VAC, 60 Hz, 15 A |
| Normal Starting Amps |
10 or less |
| Electrical Safety |
120 VAC, 60 Hz, 15 A |
| Cabinet Material |
20 gauge galvanized steel |
| Stage 1 Pre-Filter |
H2001, polypad |
| Stage 2 Pre-Filter |
H2002, 2” deep particulate pleat |
| HEPA Filter |
H242406-99, 6” deep 99.97% @ 0.3 microns |
| Transportability |
4, 360-degree swivel casters with locking feature. 2 each removable 4 fixed position casters. |
| Motor Output |
1 HP, 2-speed motor with thermal overload protection, auto re-set, 60 Hz, single phase |
| Net Weight |
124 (56.25) |
