• ADA High Efficientcy Vitreous China Fixture
• 1.1 gpf - 1.6 gpf / Flush volume determined by flush valve

Description

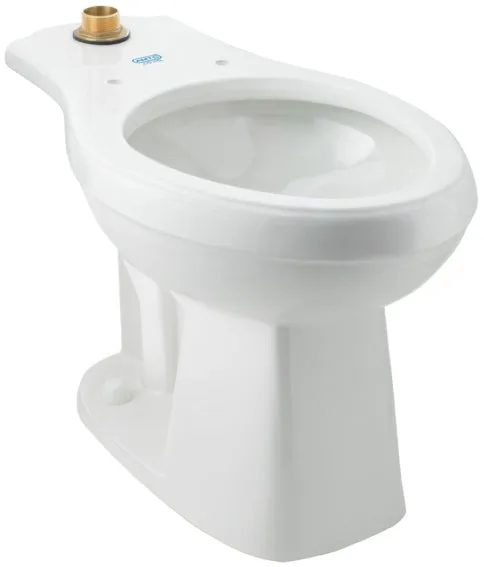

Floor mount ADA High Efficiency flush valve bowl

Fixture Specification

- Complies with ADA Accessible Standards
- White Color
- Vitreous China
- Floor Mount Water Closet Bowl
- Elongated Rim
- 10” Rough-In
- 1-1/2”  I.P.S. Top Spud Inlet
- 2” Fully Glazed Trapway
- 11-1/2” x 13” Water Surface Area

- Direct Feed Jet

- Toilet Seat Not Included
- Flushometer Not Included

Compliance & Certifications

- ASME A112.19.2/CSA B45.1
- Energy Act of 1992
- ADA- With installation consideration for section 604 Water Closets, Accessibility Guidelines.
- ICC/ANSI A117.1
- TAS - With installation consideration for section: 4.16.3 adult seat height 17"-19"
- CSA B651 - With installation consideration for Clause 4.3.6 of the standard.
- ICC-ES PMG® Certified
- WaterSense® Listed

Plumbing System Requirements

- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 25 GPM
