Product Details
＋Requires a minimum of 12" of wall depth for installation.

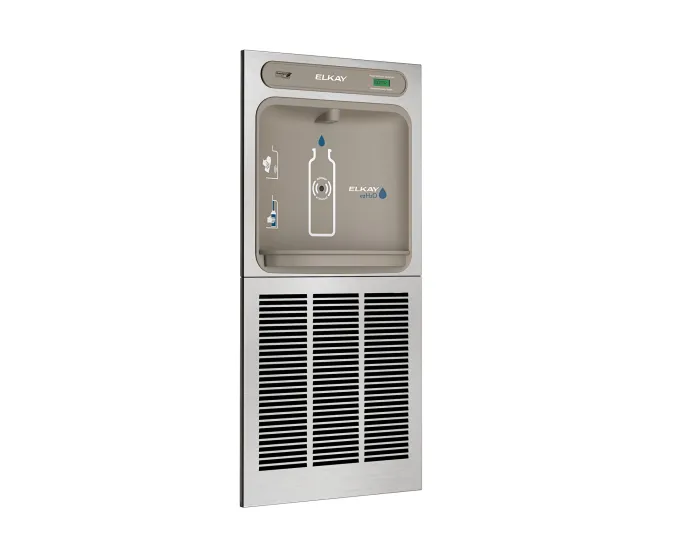

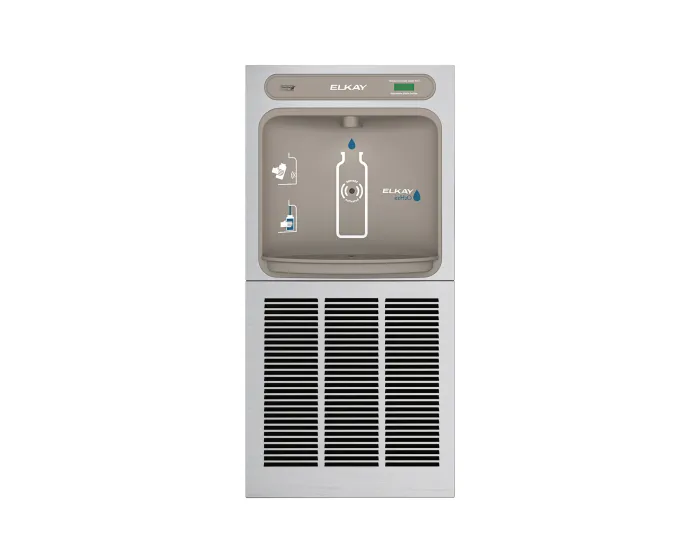

The EZWSGRNM8K is an in-wall, refrigerated bottle filler. This model has a Stainless Steel color finish.
One of the most popular models, the Elkay EZWSGRNM8K Water Bottle Filling Station makes drinking water more practical, safe, and appealing than ever before.
This Elkay in-wall bottle filler features an energy-efficient 'Green' refrigeration system that is an estimated 35% more efficient than market standards, ensuring long-term savings on energy and cost.
Being a ‘hands-free’ unit, the EZWSGRNM8K stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.
- ADA compliant design
- Fully Recessed In-wall design
- Sanitary bottle fills created from hands-free sensor activation and recessed spout with a 20-second auto shut-off system.
- Green Ticker™ tracks the number of plastic bottles saved from waste.
- Energy-efficient refrigeration system
- Includes MFWS100 mounting frame
Elkay EZWSGRNM8K resources:
|
FILTERED? |
No |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
MOUNTING DETAILS |
Wall Mount (In-Wall Frame/Plate) |
|
CHILLING DETAILS |
8 GPH |
|
INSTALLATION LOCATION |
Indoor |
|
NUMBER OF STATIONS |
One station (bottle filler only, no drinking fountain) |
|
DIMENSIONS |
L: 19-3/4" W: 3-1/2" H: 40-13/16" |
|
SHIPPING WEIGHT |
78 lbs |
|
PRODUCT COMPLIANCE |
● ADA & ICC A117.1 ● Buy American Act ● CAN/CSA C22.2 No. 120 ● GreenSpec ● NSF 42 ● NSF 53 ● NSF 61 ● NSF 372 (lead-free) ● UL 399
|
Elkay EZWSGRNM8K Includes
- Chiller
- Bottle Filler
- Mounting frame
Warranty
Refrigeration System (IF APPLICABLE)
Elkay EZWSGRNM8K refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Elkay EZWSGRNM8K warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. .
Installation Notes
- Elkay EZWSGRNM8K requires installation from licensed plumber.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
Maintenance
How to Clean
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame?
A: Yes, this model comes with an In-wall Carrier Mounting Frame.
*ASSEMBLED IN THE UNITED STATES.
