Appeal to your users with an easy way to stay hydrated and make a positive impact by saving money and protecting the environment from plastic bottle waste.

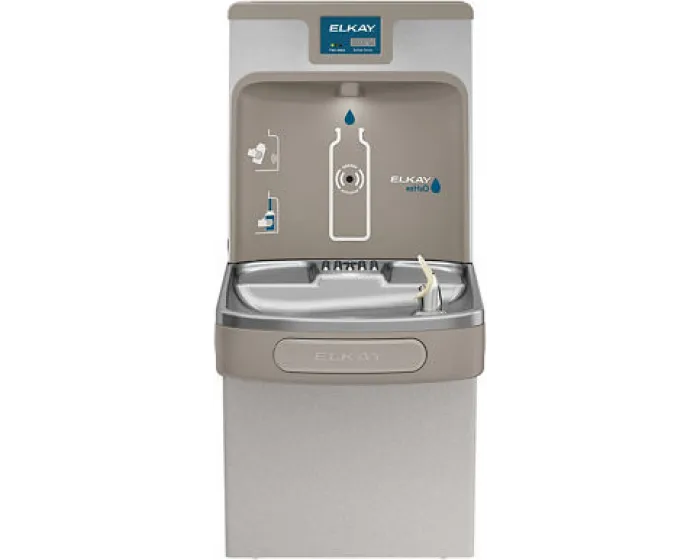

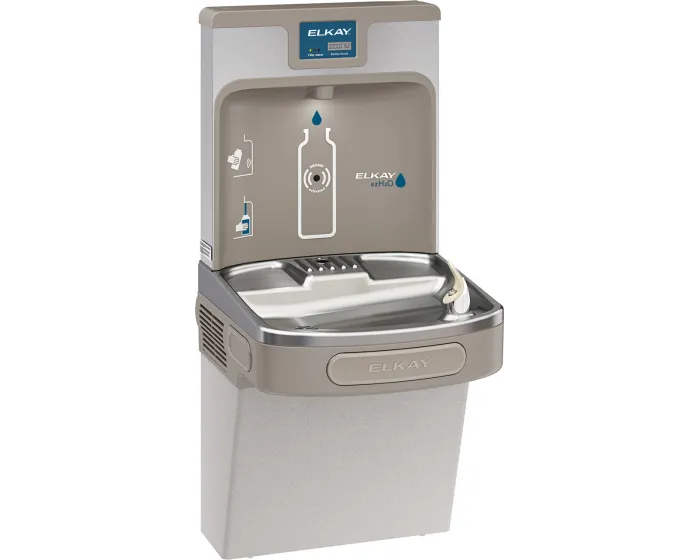

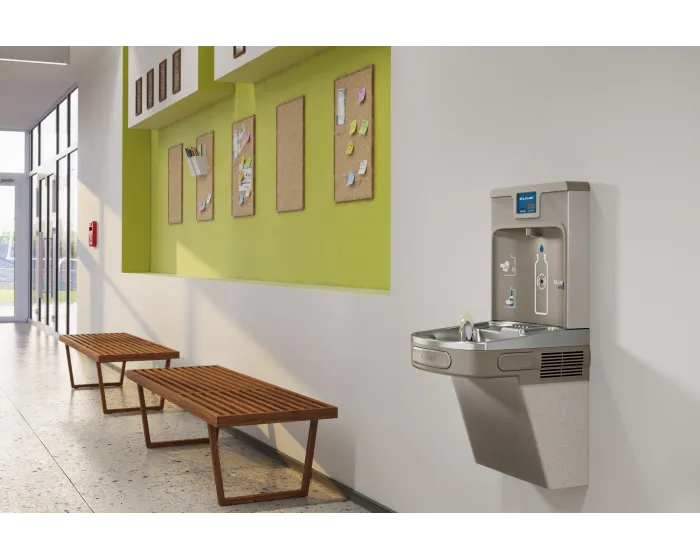

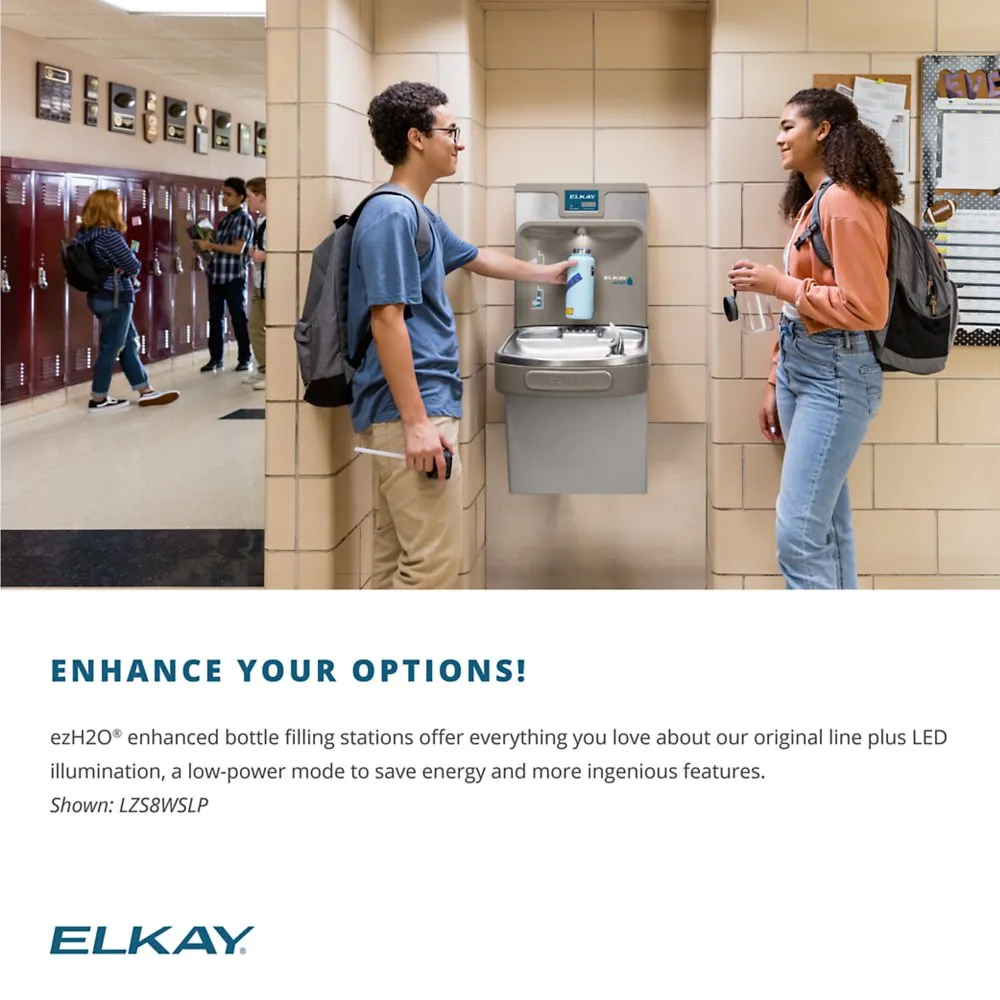

One of the top sellers for schools, airports, and other buildings, the Elkay LZS8WSLP Water Bottle Filling Station provides clean, filtered water through a fast-filling bottle filler.



Key Specifications

• Enhanced Series

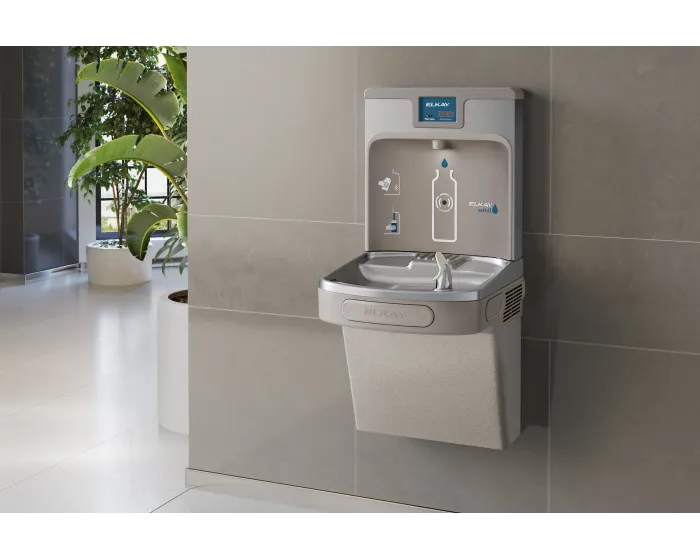

• Wall mounted, Single-level with drinking fountain and bottle filler.
• Filtered water
• Refrigerated
• Light-gray finish

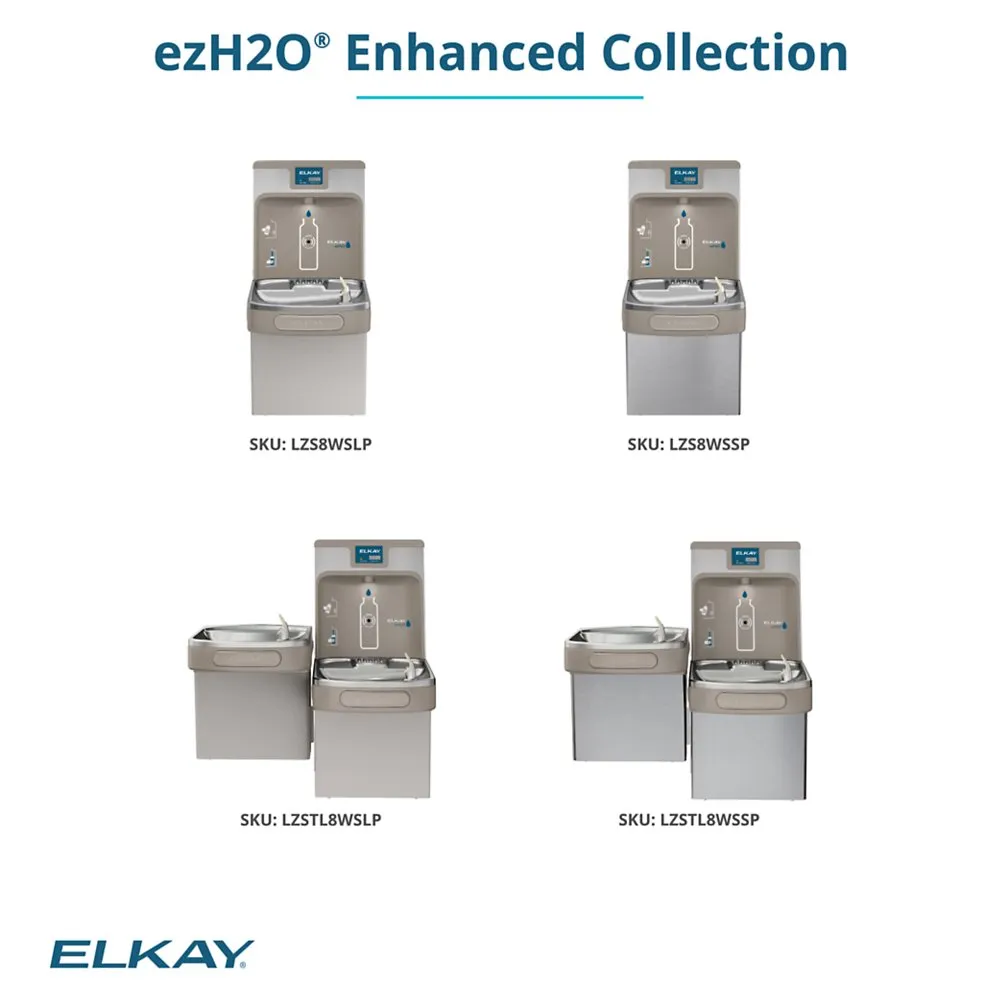

The Elkay LZS8WSLP is part of the "Enhanced" series

• Greater energy efficiency
• Diagnostic software for troubleshooting and sustainability reporting
• Easier installation & maintenance

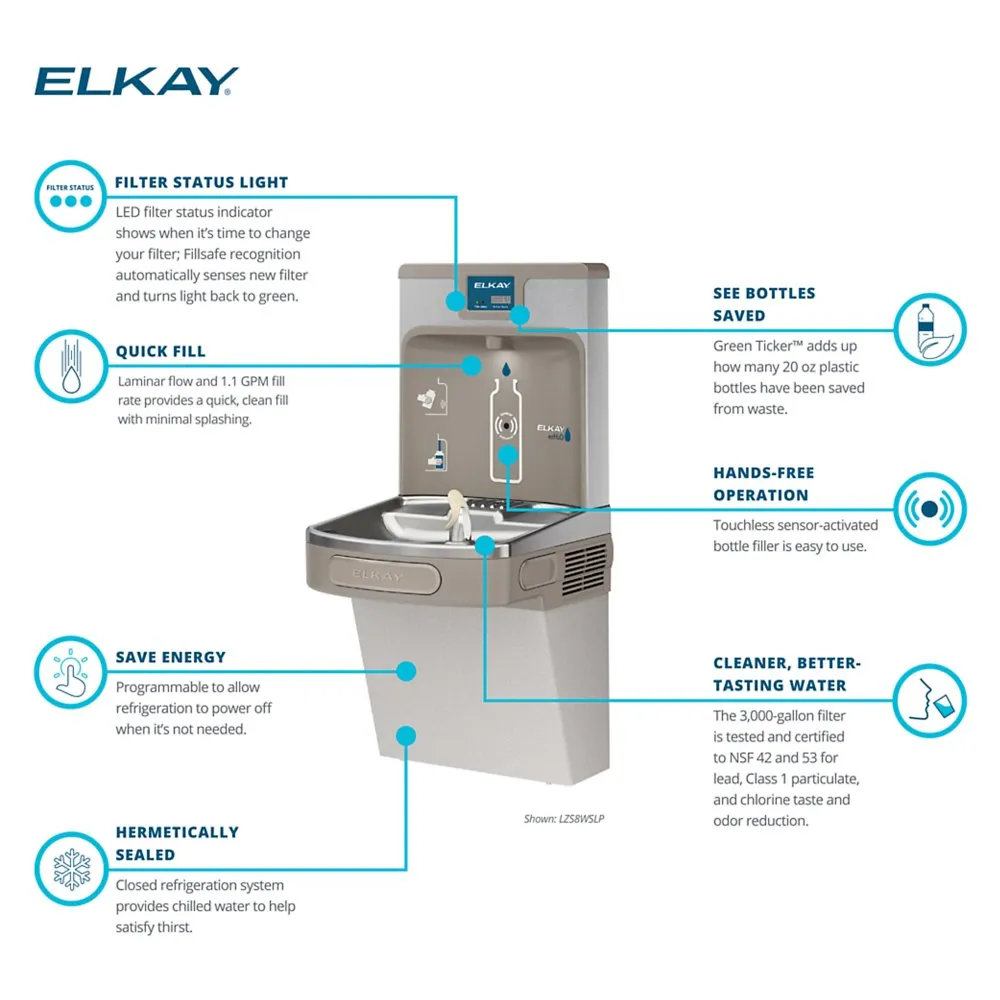

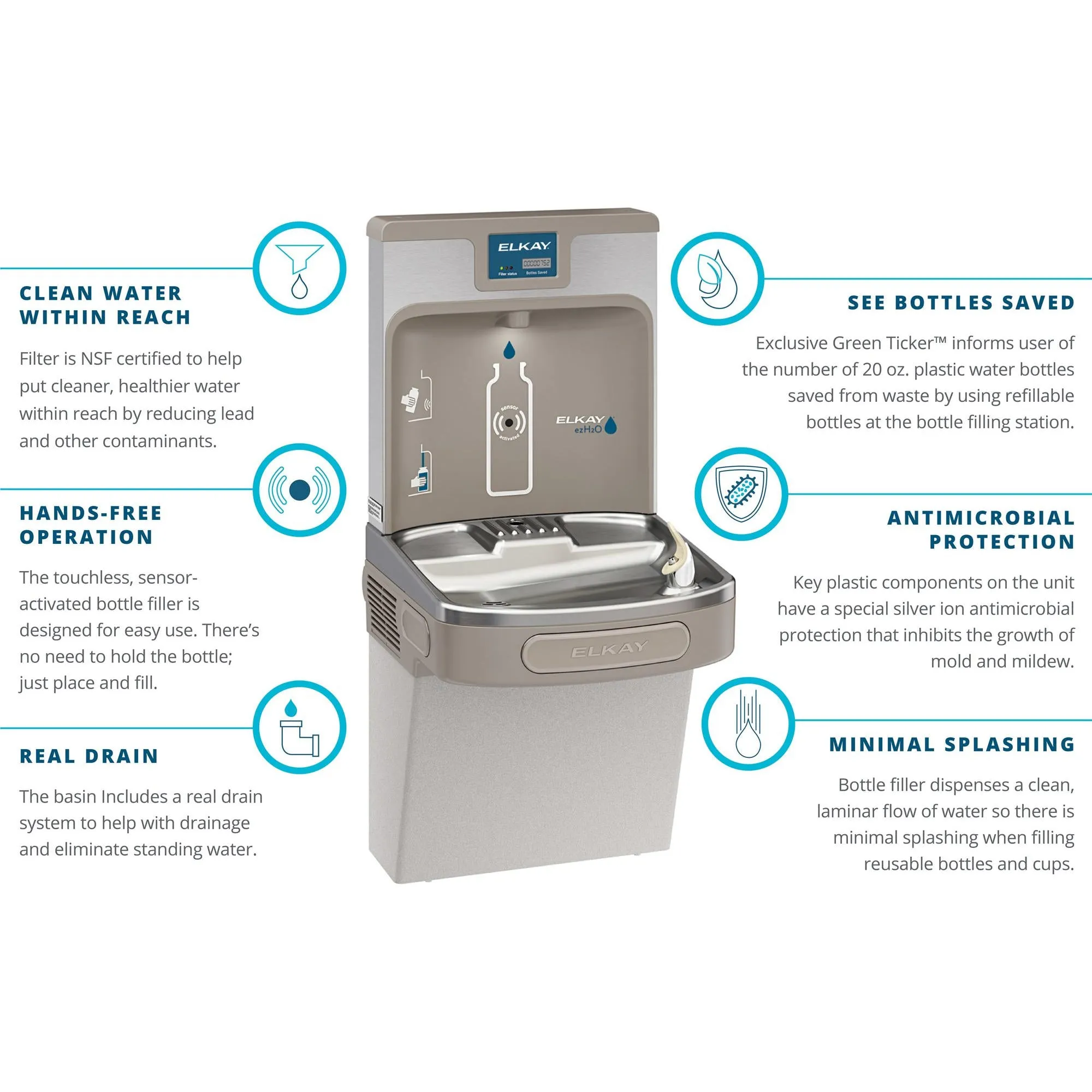

Features & Benefits



• LED Screen with Filter Status showing you when to change the filter.

• Easier Filter Replacement  'Fillsafe recognition' technology allows the LZS8WSLP to automatically recognize new filters and to update the LED light back to green upon replacement.
• Track Your Sustainability Impact with Green Ticker™ that tracks each plastic bottle saved from waste.
• Avoid Spilling  Low-energy LED Light activates upon bottle fill assisting with filling bottles.
• Safe & Sanitary with mouth guard that helps to protect against injury and silver ion antimicrobial protection on key plastic components to inhibit the growth of mold, mildew and microorganisms.

• Cold & Refreshing - hermetically sealed refrigeration system provides chilled water to satisfy thirst.
• High Quality Filter - the 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulates, chlorine taste and odor reduction.

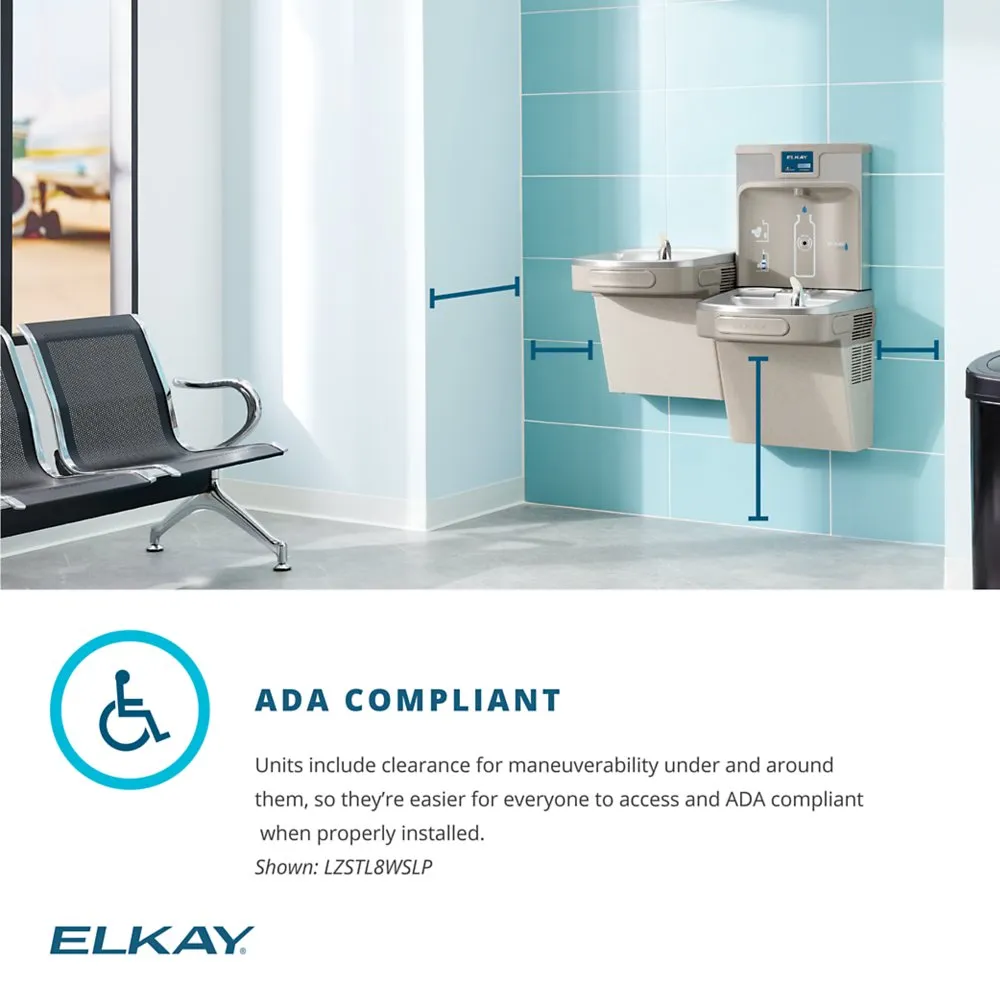

• ADA compliant design



Elkay LZS8WSLP Parts & Add-Ons



• - In-wall Carrier for Single-station On-wall Bottle Fillers Coolers & Fountains.
• - Elkay Cane Apron for EZ Gray for increased ADA / handicap accessible.





FAQ



Q: What is the Elkay LZS8WSLP Filter Replacement?

A: The WaterSentry Replacement Filter is standard option for the Enhanced EZH20 Water Bottle Filling Station. Additionally, the (High, 2x Capacity at 6,000 Gal.) or the Elkay (PFAS) filter can be used.

Q: What new features have been added to the Enhanced Bottle Filling Stations?

A: One of the main differences is the Energy Savings system, which can be set to power-off at certain times to lower electric bill. The systems also have new diagnostics built in the refrigeration system to track savings and help troubleshoot, if there is ever an issue.

Q: How to update the Elkay EZH2O LZS8WSLP filter reset?

The filter replacement is much easier for the Enhanced LZ8WSLP as the LED light automatically resets upon replacing the new filter.

Q: How long do filters last?

A: The WaterSentry Filters have a 3,000 Gallon Capacity. Depending on usage and your water condition, this typically lasts from 6-12 months. It is recommended to replace filter at least once per year.

Q: What maintenance is needed for the Water Bottle Filling Station?

A: It is recommended to routinely clean your Bottle Filling Station with a soft cloth and mild dishwashing soap to spray and wipe down the unit. It is also recommended to clean the flexible fill mat.  Remove the four screws to wipe beneath and on top of the mat. Avoid using steel soap pads.

Q: What does the Elkay Smart System do for this Enhanced unit?

A: The smart system provides diagnostics that make it easier to troubleshoot and custom power settings to save energy. The monitoring aspect of the smart system is still in development.

Q: What water pressure is needed for the Enhanced Bottle Filling Station?

A: Single-level Bottle Filling Stations require 20 psi to 105 psi supply line pressure.

Q: What is the warranty for the LZS8WSLP?

 Elkay LZS8WSLP refrigeration system includes 5 year limited warranty.

Elkay LZS8WSLP warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first.
