Product Details
＋Requires a minimum of 12" of wall depth for installation.
This unit does not include the mounting frame, which is required and must be ordered separately for early installation (if you need both the unit and mounting frame, please order the Halsey Taylor HTHBGRN8-WF instead.)

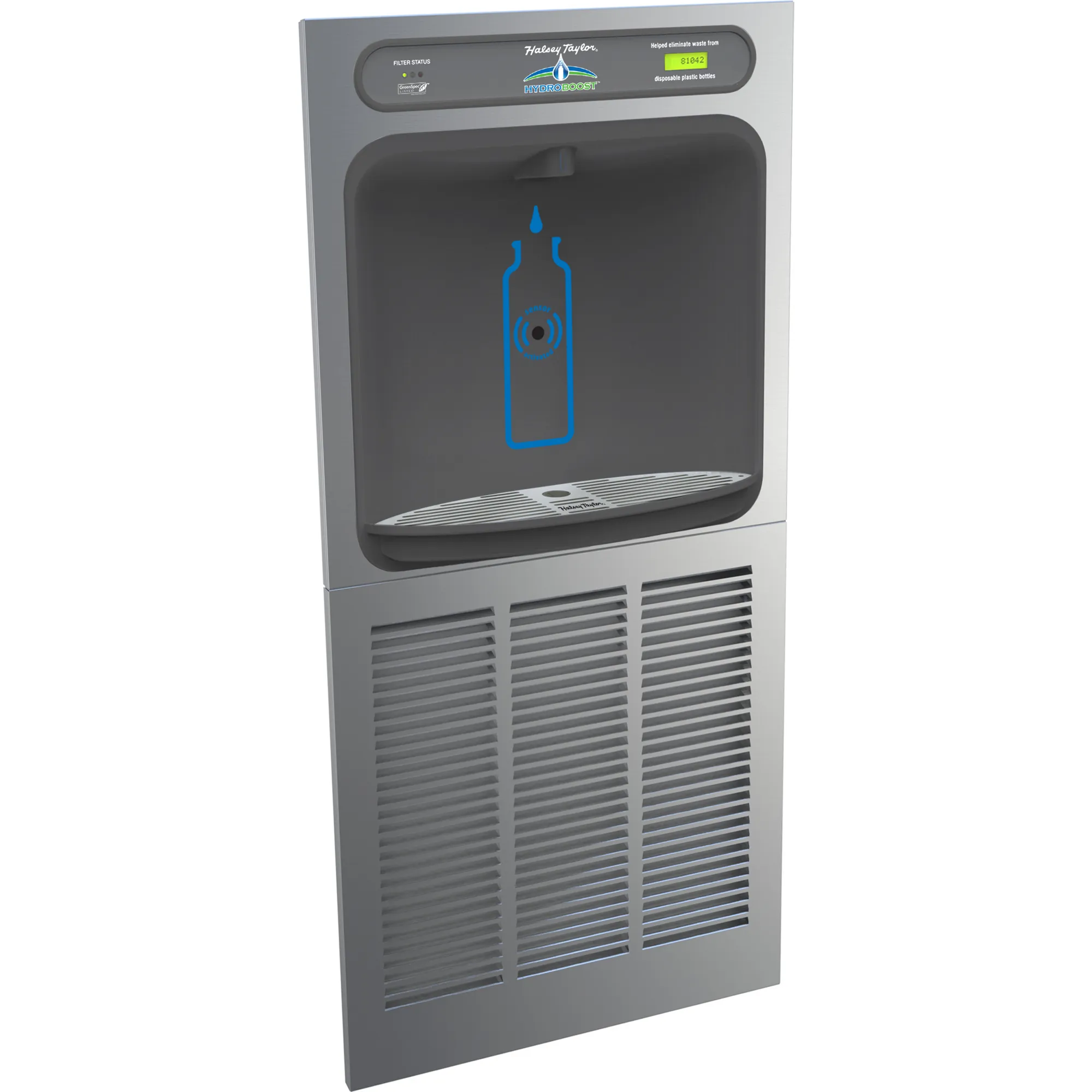

The Halsey Taylor HTHBGRN8LM-WF is an in-wall, filtered, refrigerated bottle filler. This model has a Stainless Steel color finish.
One of the most popular models, the HTHBGRN8LM-WF bottle filling station makes drinking water more practical, safe, and appealing than ever before.
The HTHBGRN8LM-WF features an energy-efficient 'Green' refrigeration system that is an estimated 35% more efficient than market standards, ensuring long-term savings on energy and cost.
Being a ‘hands-free’ unit, the HTHBGRN8LM-WF stands out as one of the most sanitary options for clean drinking water thanks to their hands-free sensor activation that minimizes the risks of spreading germs, bacteria, or viruses.
-
Fully recessed in-wall design
- Hands-free sensor activation
- ADA compliant
- Sanitary bottle fill created from hands-free sensor activation and recessed spout with 20 second auto shut-off system.
- Quick fill rate of 1.1 Gallons Per Minute
- Green Ticker™ tracks number of plastic bottles saved from waste.
- Filtered - 3000 gallon capacity WaterSentry® Plus filtration with visual LED Filter Monitor to indicate when replacement is necessary
- Energy-efficient refrigeration system.
Halsey Taylor HTHBGRN8LM-WF resources:
- Halsey Taylor HTHBGRN8LM-WF CAD Symbols: - -
|
FILTERED? |
Yes |
|
COOLER CABINET FINISH |
Stainless Steel |
|
POWER |
115V/60Hz |
|
MOUNTING DETAILS |
Wall Mount (In-Wall Frame/Plate) |
|
CHILLING DETAILS |
8 GPH |
|
REFRIGERANT |
R-134 |
|
TEMPERATURE CAPACITY |
50°F drinking water |
|
INSTALLATION LOCATION |
INDOOR |
|
NUMBER OF STATIONS |
One station (bottle filler only, no drinking fountain) |
|
DIMENSIONS |
L: 19-3/4″ W: 3-1/2″ H: 40-13/16″ |
|
SHIPPING WEIGHT |
80 lbs |
|
PRODUCT COMPLIANCE |
|
Halsey Taylor HTHBGRN8LM-WF Includes
- Chiller
- Bottle Filler
- Filter kit
Warranty
Refrigeration System (IF APPLICABLE)
Halsey Taylor HTHBGRN8LM-WF refrigeration system includes 5 year limited warranty.
Electrical Parts & Water System
Halsey Taylor HTHBGRN8LM-WF warranty for electrical parts and water system is valid 18 months from the factory shipment or 12 months from the date of installation. The warranty will honor which ever date falls first. .
Installation Notes
- Halsey Taylor HTHBGRN8LM-WF requires installation from licensed plumber.
- Requires access to electrical connection.
- Product also includes physical copy of installation instructions in package.
Maintenance
How to Clean
It is recommended to use soft cloth and mild dishwashing soap to spray and wipe down the unit. Routine cleaning is also suggested.
How to Change Filter (IF APPLICABLE)
When filter status light turns to red, the filter needs to be changed. Follow these steps:
1) Remove the bottom access panel.
2) Unplug unit
3) Unscrew old filter
4) Install new WaterSentry Plus filter.
5) Reset filter light back to green by removing top cover and pressing the black reset button. Select reset filter. The light should appear as green. Detailed instructions on filter light reset are included in produce package.
of CLEANING, FILTER REPLACEMENT, & FILTER LIGHT RESET instructions.
Read GUIDES on how to an Elkay EZH20 Filter and an EZH2O Bottle Filler (applies to Halsey Taylor units)
FAQ
Q: How do I access the filter status and bottle counter button?
A: To access the program button, the lower panel of the unit must be must be opened. The programming button is located at the bottom right corner of the upper panel. This area of the unit is concealed by the lower panel.
Q: Does this model come with a Mounting Frame?
A. This unit does not include the MFWS100 mounting frame, which is required and must be ordered separately for early installation (if you need both the unit and mounting frame, please order the Halsey Taylor HTHBGRN8-WF instead.)
*ASSEMBLED IN THE UNITED STATES.
