High Power Robot Smart Car Motor Driver BTS7960

Instruction:

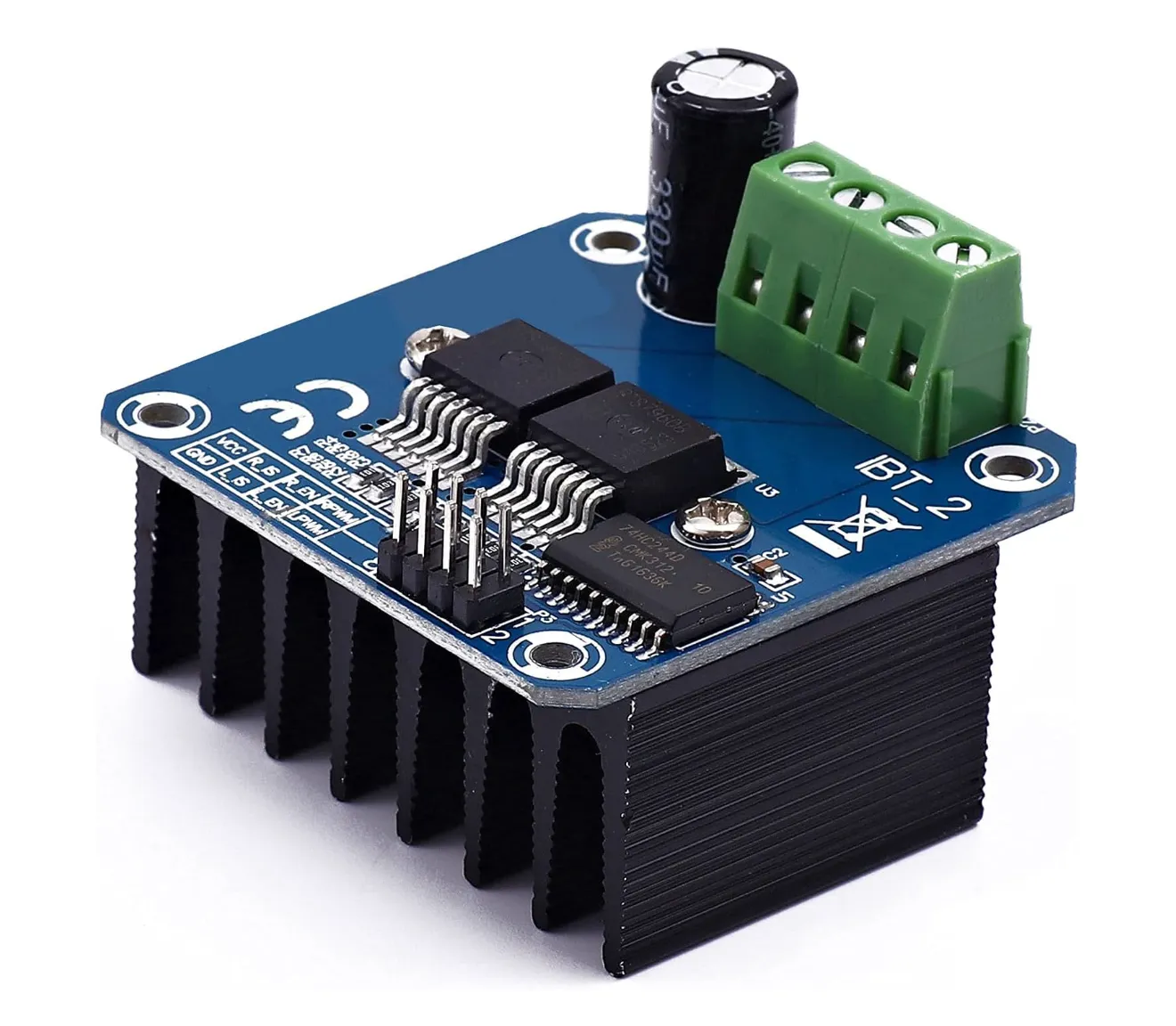

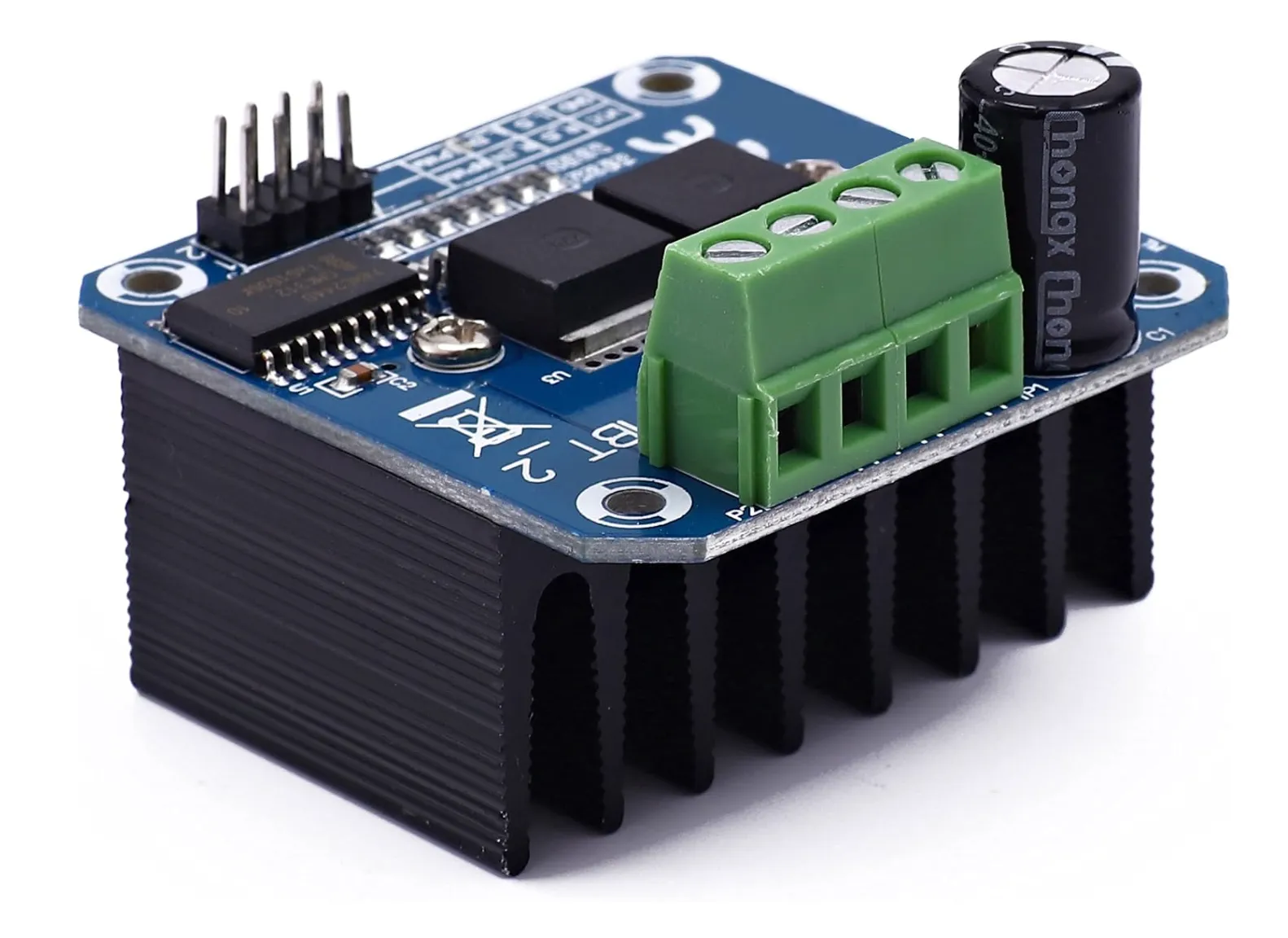

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A.

Electrical performance:

• Model: IBT-2
• Input voltage: 6V-27V
• Maximum current: 43A
• Input level: 3.3-5V
• Control method: PWM or level
• Duty cycle: 0-100%
• RPWM: forward level or PWM signal input, active high
• LPWM: Reverse level or PWM signal input, active high
• R_EN: forward drive enable input, high-level enable, low-level off
• L_EN: Reverse drive enable input, high-level enable, low-level off
• R_IS: forward drive current alarm output
• L_IS: Reverse drive current alarm output
• VCC: 5 V power output, 5V power supply connection with the microcontroller
• GND: signal common low end
