AC - DC Switching Power Supply

LM200-12B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same timeacceptsDCinput voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMCperformance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, EN60335, GB4943 standards and they are widely usedinareasof industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Features:

• AC input range: 176 - 264VAC
• DC input range: 240 - 370VDC
• Ultra low standby power consumption: <0.75W@230VAC
• Operating ambient temperature range: - 30℃to 70℃
• High efficiency, high reliability
• LED indicator for power on
• Output short circuit, over-current, over-voltage, over-temperature protection
• Operating altitude up to 5000m
• Warranty - 2 Years

Package Includes:

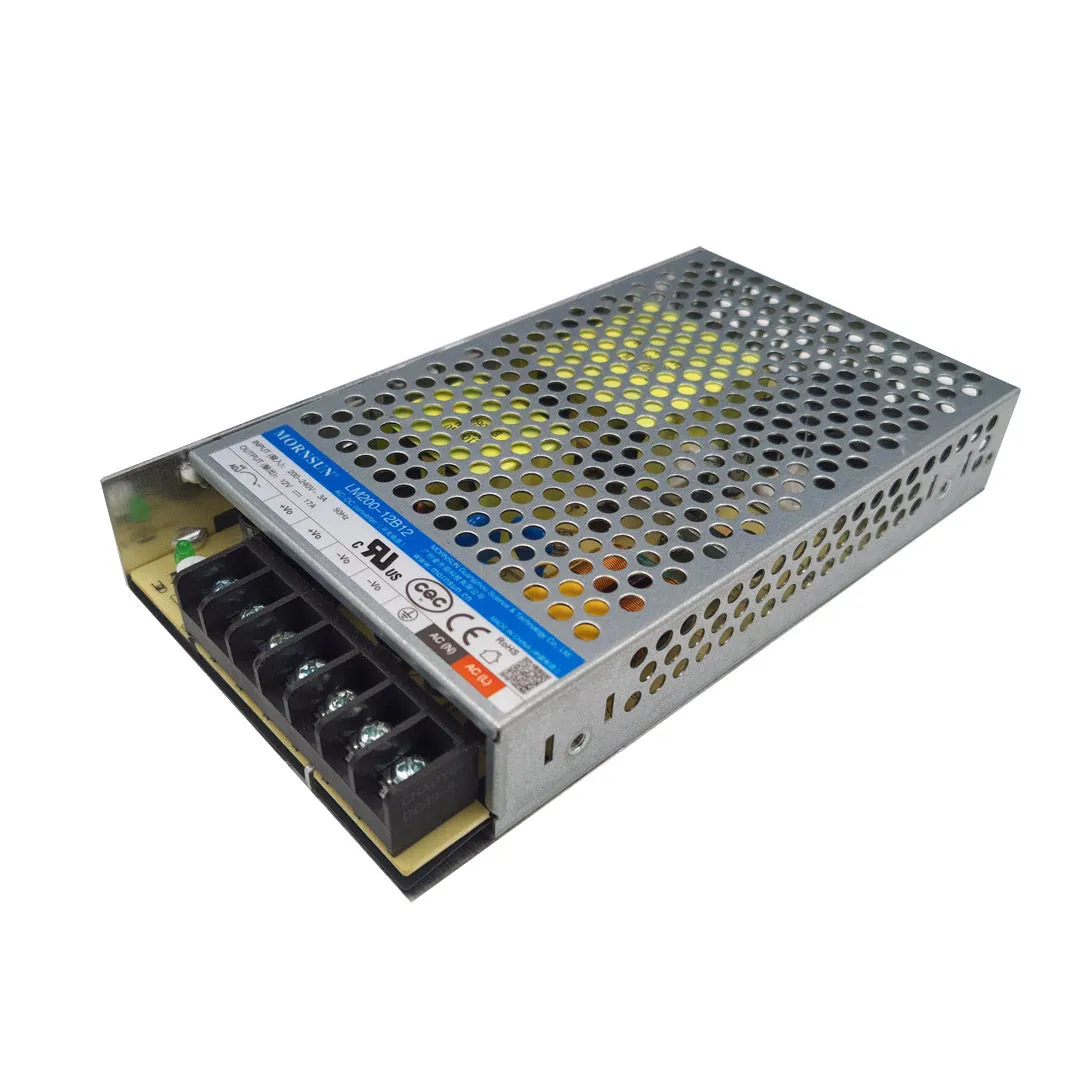

• 1 x  Mornsun 12V 17A 204W  AC DC Enclosed Single Output SMPS LM200-12B12
